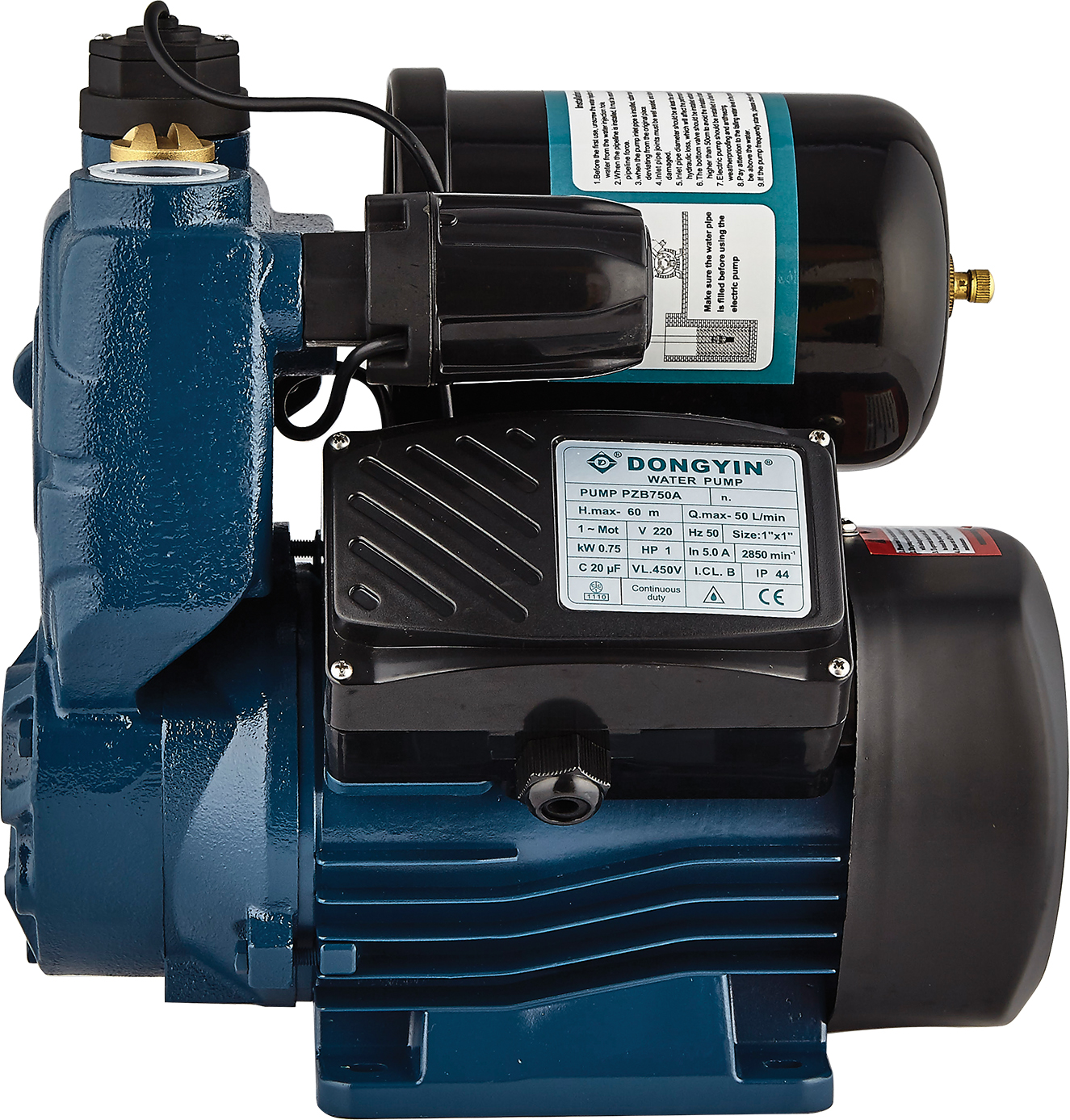

PZB Self-priming Electric Pump With Mini Tank
DONGYIN Pump is china top water pump supplier and manufacturer with high quality and performance
PZB pump is Self-Priming household booster clean water pump.
PZB series pump is self-priming pherephral pump.The system consists of a water pump, a pressure tank, and a pressure switch. The specially designed structure make it better appearance and performance.These systems give suitable mains water pressure as required by modern domestic appliances and industrial applications.
Maximum fluid temperature up to +40℃
Maximum sand content: 0.25%
Maximum suction lift: 8m
Rewindable motor
Single-phase:220-240V/50Hz
Curve tolerance according to ISO 9906
| MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | ||
| W | H | L | 1～ | |||
| PZB200A | 1" | 1" | 100 | 250 | 220 | 8.5 |
| PZB350A | 1" | 1" | 100 | 250 | 250 | 9 |
| PZB500A | 1" | 1" | 115 | 250 | 250 | 12.5 |
| PZB750A | 1" | 1" | 115 | 270 | 270 | 14.5 |
| PZB1000A | 1" | 1" | 115 | 280 | 280 | 16 |
| PZB1500A | 1? | 1" | 130 | 320 | 320 | 25 |
Other voltages or frequency 60 HZ
Products Description
PZB series pump is self-priming pherephral pump.The system consists of a water pump, a pressure tank, and a pressure switch. The specially designed structure make it better appearance and performance.These systems give suitable mains water pressure as required by modern domestic appliances and industrial applications.

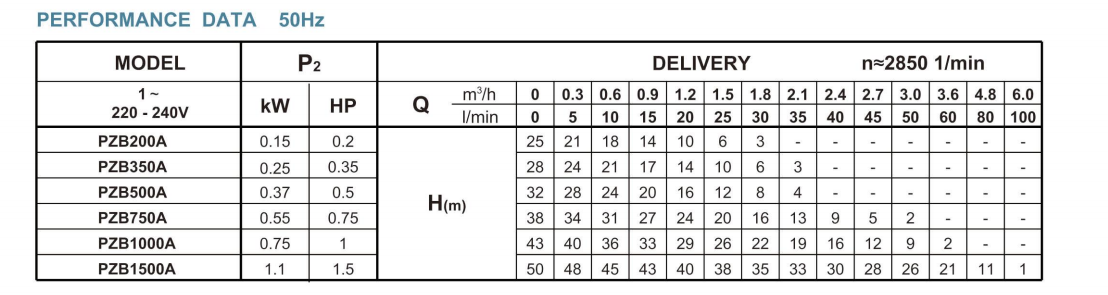

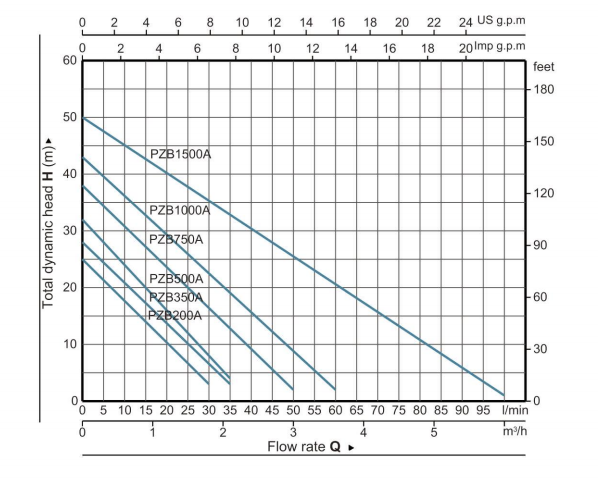

Performance Curve
