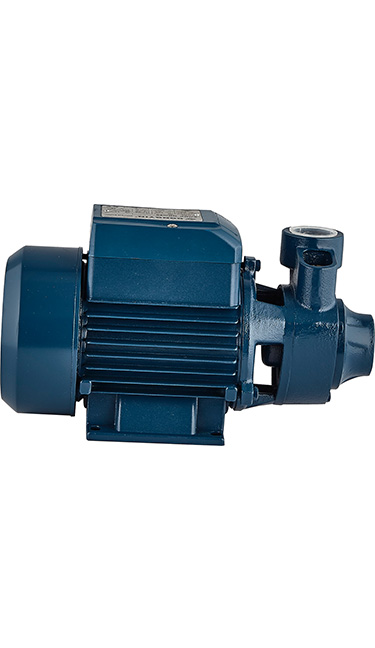

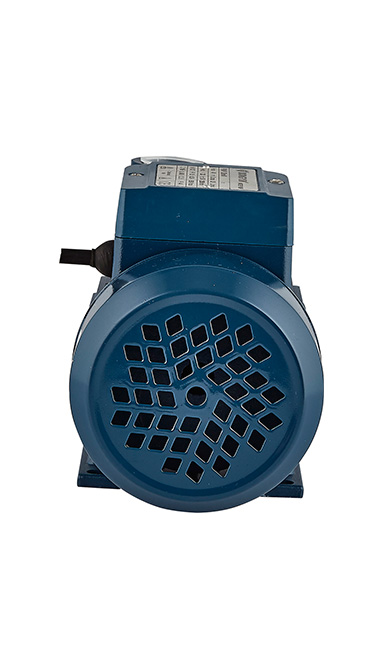

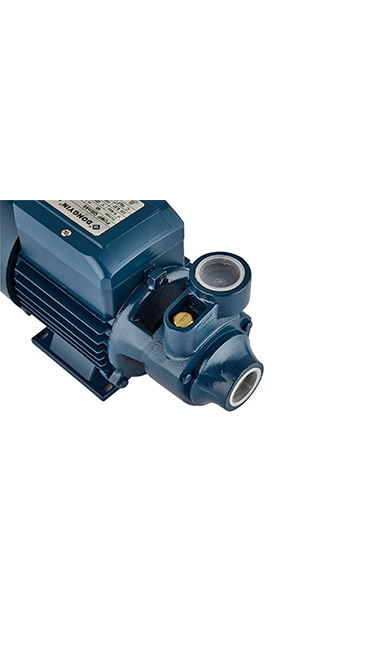

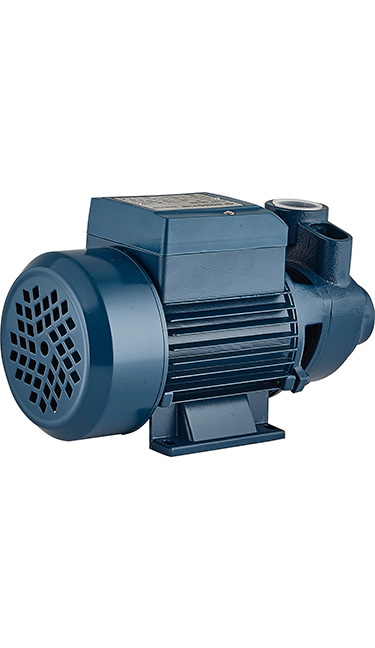

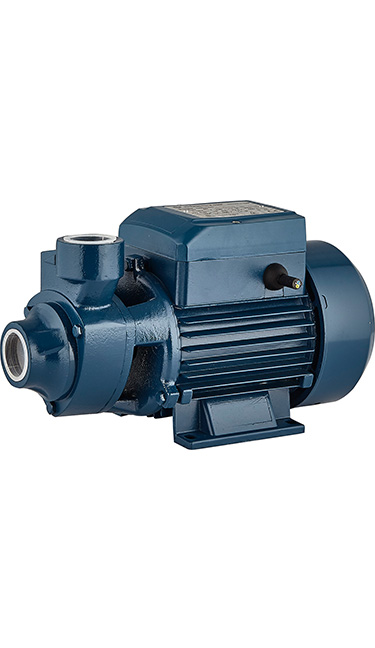

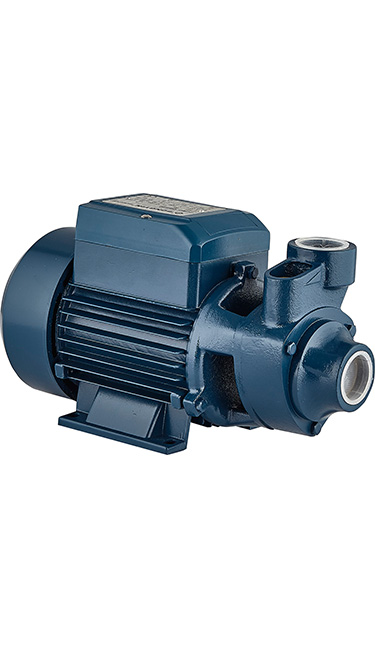

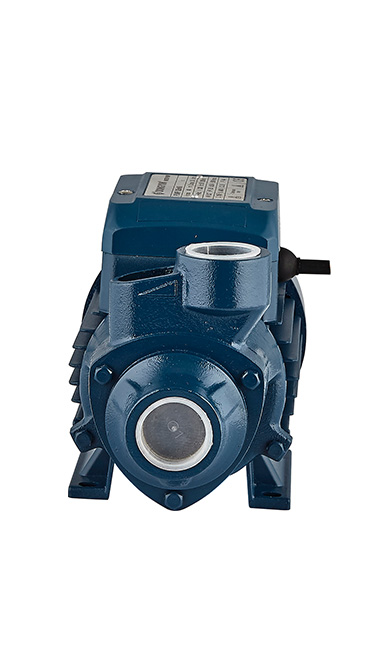

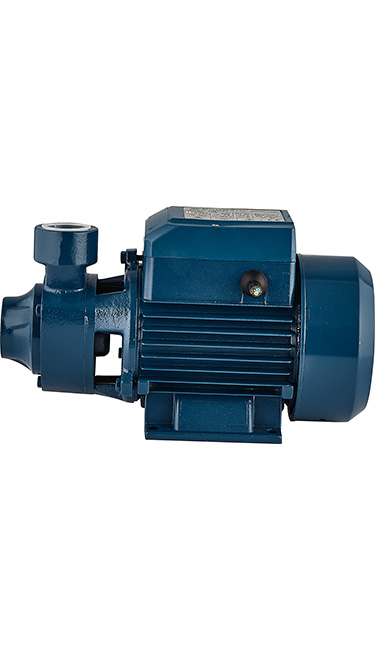

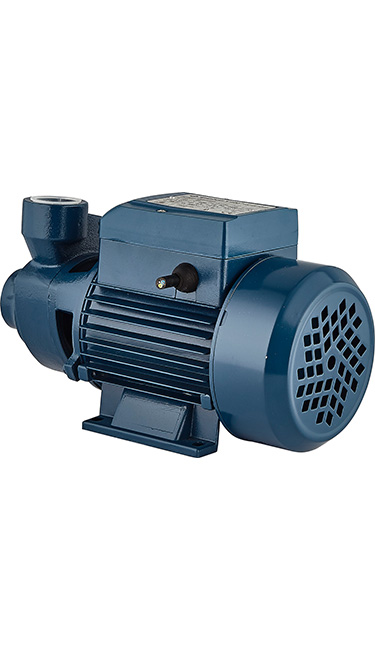

QB Electric Peripheral Pump
DONGYIN Pump is china top water pump supplier and manufacturer with high quality and performance
QB series pump is household booster clean water pump
QB series peripheral pump can be use to transfer clean water, it is ideal for Pool Pumping, Increasing the Water Pressure in the pipe, Garden Sprinkling, Irrigation. Also this pump is simple to install and easy to use.
Maximum fluid temperature up to +40℃
Maximum sand content: 0.25%
Maximum suction lift: 8m
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Curve tolerance according to ISO 9906
Impeller material: brass

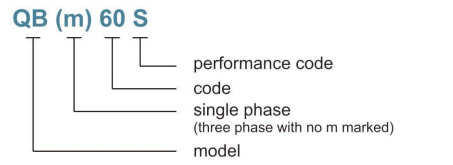

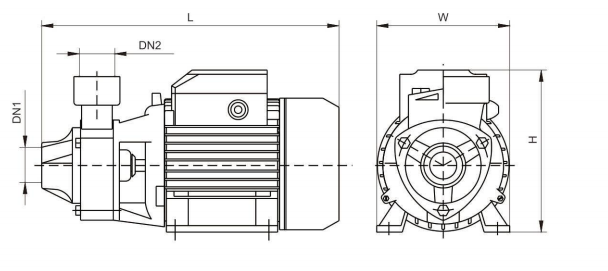

MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | |||
W | H | L | 1~ | 3~ | |||
QB(m)60S | 1" | 1" | 117 | 150 | 255 | 6 | 5.5 |
QB(m)60 | 1" | 1" | 117 | 150 | 264 | 6.3 | 5.8 |
QB(m)70 | 1" | 1" | 135 | 180 | 302 | 8 | 7.5 |
QB(m)80 | 1" | 1" | 135 | 180 | 302 | 8 | 7.5 |
QB(m)85 | 1"/2 | 1"/2 | 135 | 185 | 310 | 8.1 | 7.6 |
Other voltages or frequency 60 Hz
Aluminum winding is available
Products Description
QB series peripheral pump can be use to transfer clean water, it is ideal for Pool Pumping, Increasing the Water Pressure in the pipe, Garden Sprinkling, Irrigation. Also this pump is simple to install and easy to use.
Operation Conditions
Maximum fluid temperature up to +40℃
Maximum sand content: 0.25%
Maximum suction lift: 8m
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Curve tolerance according to ISO 9906
Impeller material: brass
MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | |||
W | H | L | 1~ | 3~ | |||
QB(m)60S | 1" | 1" | 117 | 150 | 255 | 6 | 5.5 |
QB(m)60 | 1" | 1" | 117 | 150 | 264 | 6.3 | 5.8 |
QB(m)70 | 1" | 1" | 135 | 180 | 302 | 8 | 7.5 |
QB(m)80 | 1" | 1" | 135 | 180 | 302 | 8 | 7.5 |
QB(m)85 | 1"/2 | 1"/2 | 135 | 185 | 310 | 8.1 | 7.6 |
Optional Available On Request
Other voltages or frequency 60 Hz
Aluminum winding is available

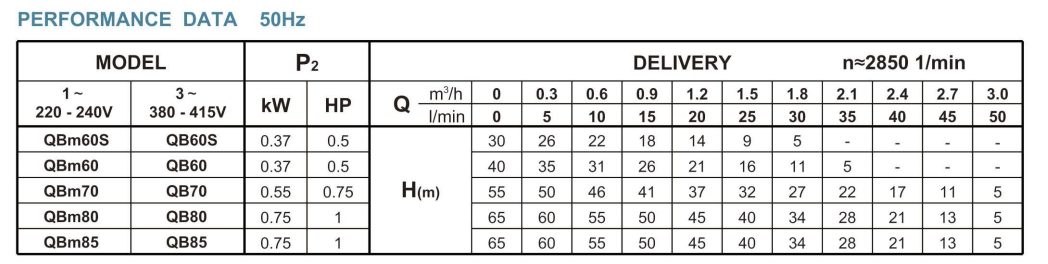

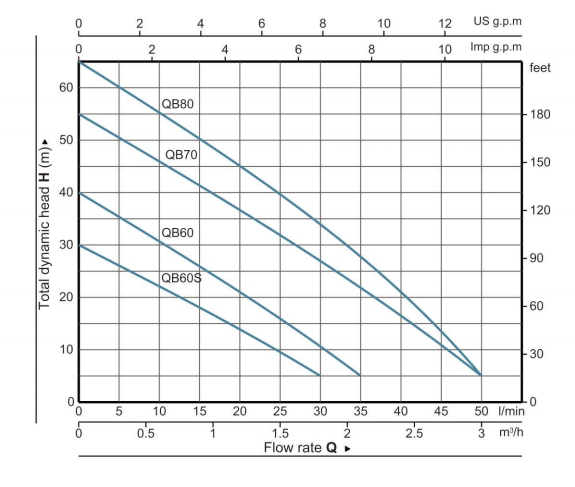

Performance Curve
