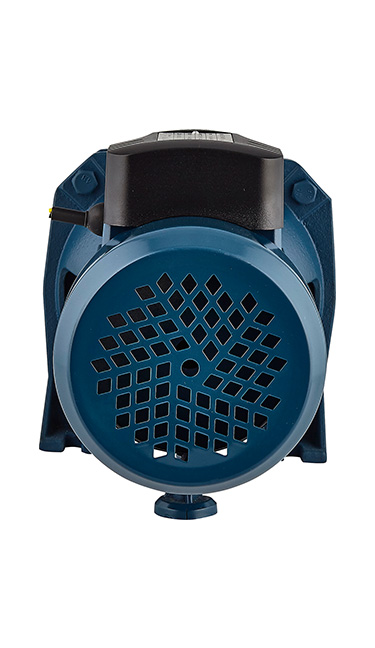

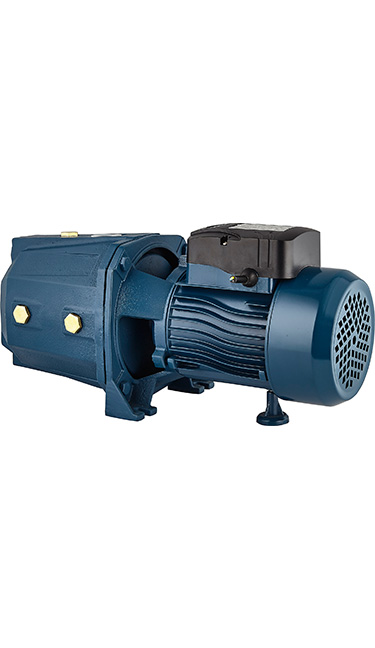

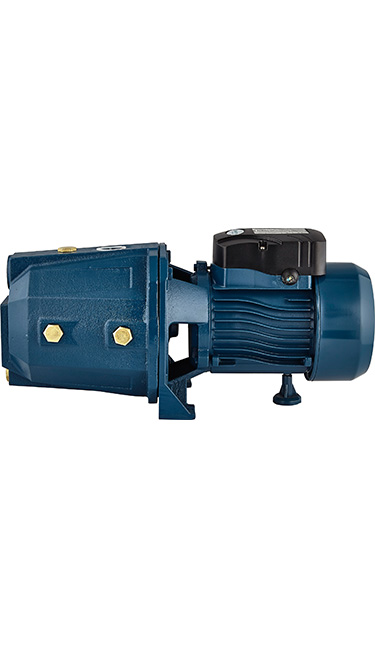

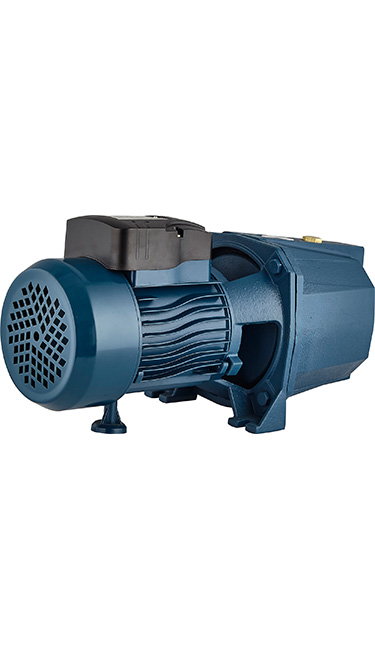

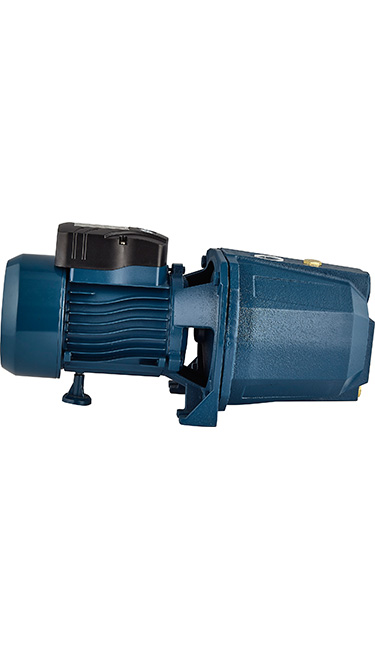

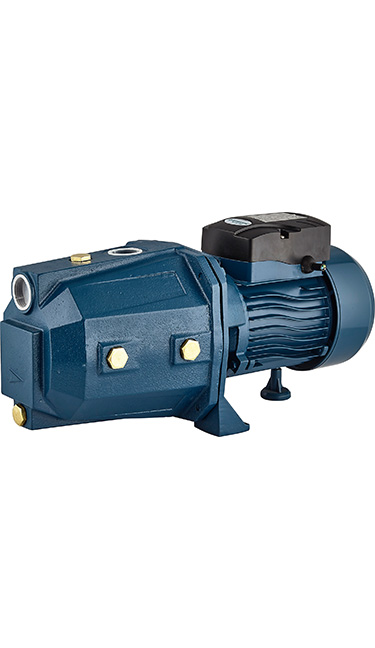

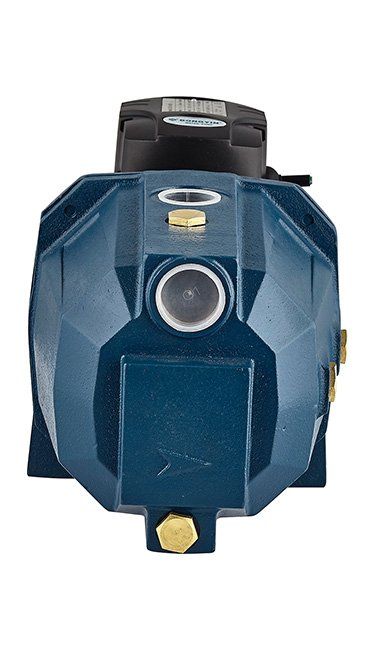

JET Shallow Well JET Pump
DONGYIN Pump is china top water pump supplier and manufacturer with high quality and performance.
JET pump is designed for shallow wells up to 25' deep or to boost municipal water pressure.
The JET series are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle.They are suitable for pumping clean water and non-aggressive liquid. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and pressure boosting etc.
Maximum fluid temperature up to +40℃
Maximum sand content: 0.25%
Maximum suction lift: 9m
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Curve tolerance according to ISO 9906
Impeller material: plastic or brass

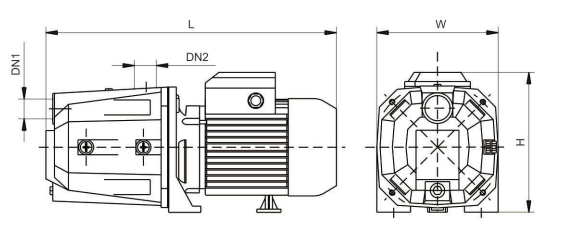

| MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | |||
| W | H | L | 1~ | 3~ | |||
| D-JET(m)-60M | 1" | 1" | 150 | 176 | 338 | 12 | 11.5 |
| D-JET(m)-100M | 1" | 1" | 180 | 213 | 416 | 16 | 15.5 |
| D-JET(m)-100H | 1" | 1" | 180 | 213 | 416 | 16 | 15.5 |
| D-JET(m)-100L | 1" | 1" | 180 | 213 | 416 | 16 | 15.5 |
| D-JET(m)-125M | 1" | 1" | 180 | 213 | 416 | 17 | 16.5 |
Special mechanical seal
Other voltages or frequency 60 Hz
Products Description
The JET series are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle.They are suitable for pumping clean water and non-aggressive liquid. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and pressure boosting etc.
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Curve tolerance according to ISO 9906
Impeller material: plastic or brass
| MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | |||
| W | H | L | 1~ | 3~ | |||
| D-JET(m)-60M | 1" | 1" | 150 | 176 | 338 | 12 | 11.5 |
| D-JET(m)-100M | 1" | 1" | 180 | 213 | 416 | 16 | 15.5 |
| D-JET(m)-100H | 1" | 1" | 180 | 213 | 416 | 16 | 15.5 |
| D-JET(m)-100L | 1" | 1" | 180 | 213 | 416 | 16 | 15.5 |
| D-JET(m)-125M | 1" | 1" | 180 | 213 | 416 | 17 | 16.5 |

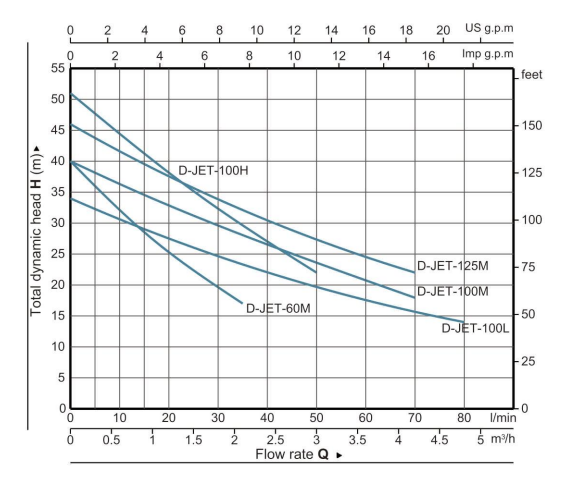

Performance Curve
