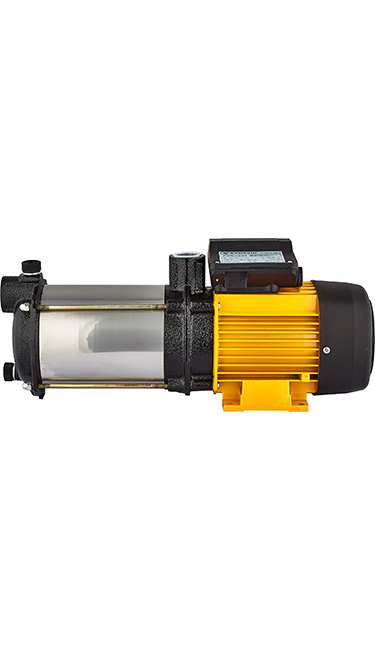

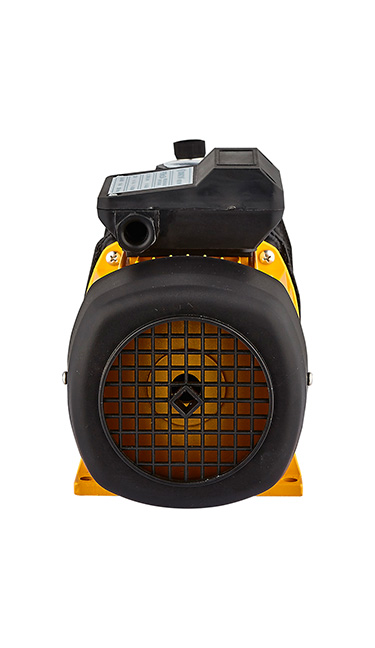

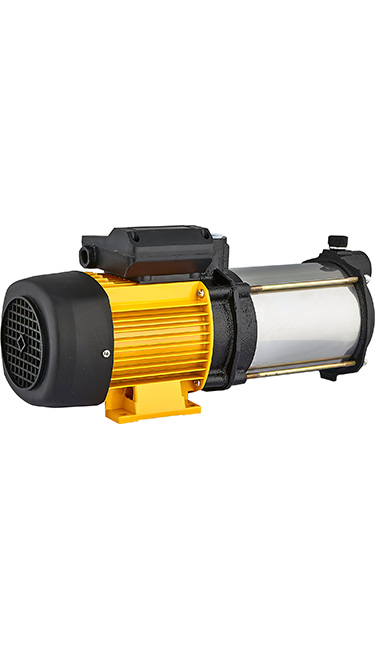

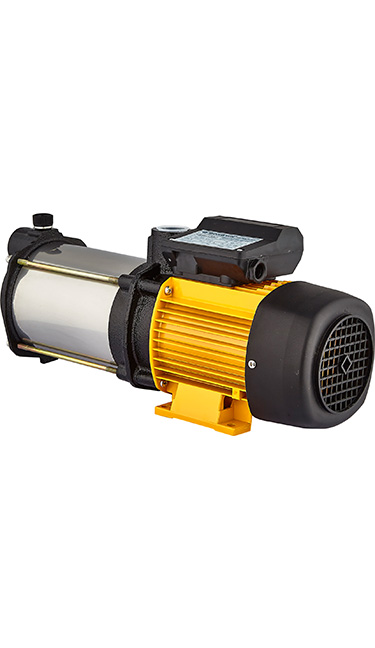

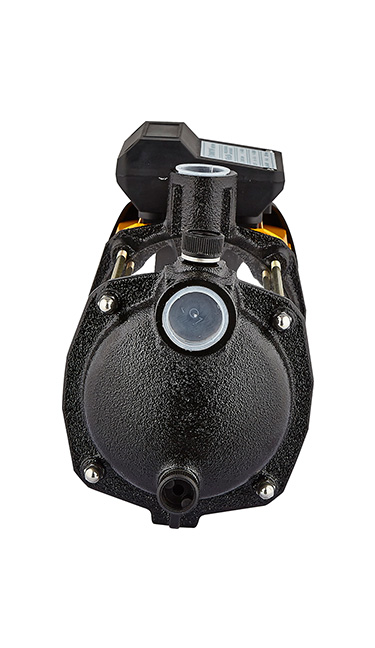

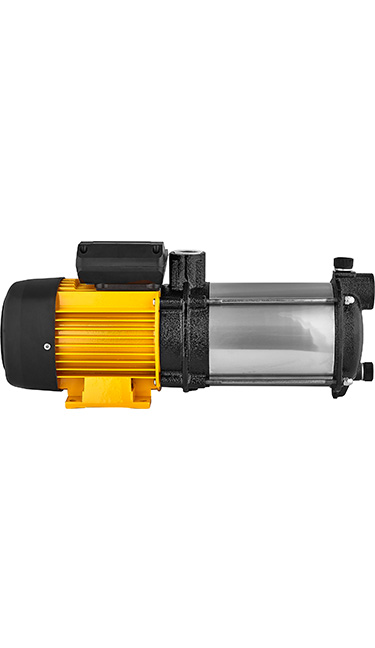

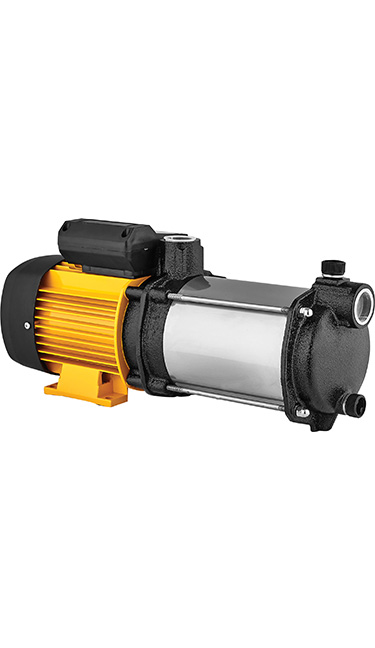

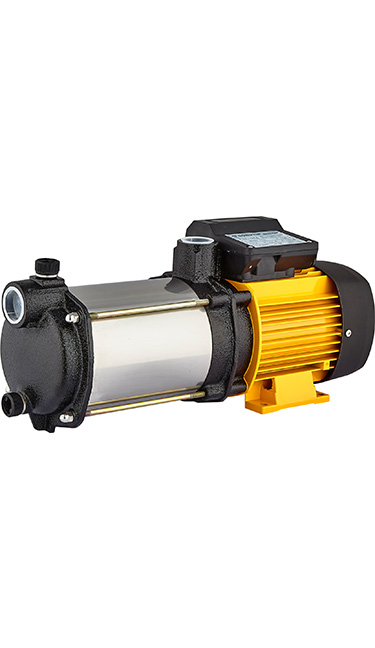

PSR Horizontal Multistage Centrifugal Electric Pump
DONGYIN Pump is china top water pump supplier and manufacturer with high quality and performance.
PSR pump is used in pressure boosting and water supply systems for clean water.
PSR series pumps are used in domestic and civil applications such as the pressurisation and distribution of water in combination with pressure sets, and in rain water recovery and irrigation systems, etc.
Maximum fluid temperature up to +40°C
Maximum sand content:0.25%
Maximum suction lift: 8m
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Curve tolerance according to ISO 9906

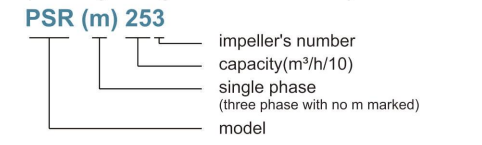

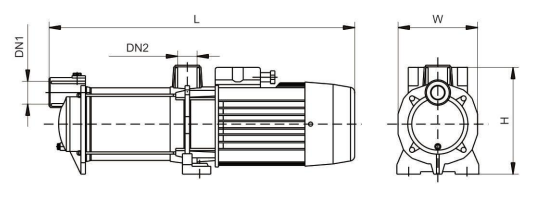

| MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | |||
| W | H | L | 1～ | 3～ | |||
| PSR(m)253 | 1" | 1" | 138 | 192 | 423 | 14 | 13.5 |
| PSR(m)254 | 1" | 1" | 138 | 192 | 449 | 14.5 | 14 |
| PSR(m)255 | 1" | 1" | 138 | 192 | 475 | 15 | 14.5 |
| PSR(m)352 | 1" | 1% | 159 | 214 | 487 | 19 | 18.5 |
| PSR(m)353 | 12 | 17 | 159 | 214 | 514 | 21 | 20 |
| PSR(m)354 | 17 | 1% | 159 | 214 | 541 | 23 | 22 |
| PSR355 | 1" | 1% | 159 | 214 | 568 | - | 22.5 |
| PSR(m)452 | 1" | 1% | 173 | 250 | 530 | 24.5 | 23 |
| PSR(m)453 | 17 | 1% | 173 | 250 | 560 | 26.5 | 25 |
| PSR(m)454 | 1" | 1% | 173 | 250 | 590 | 29 | 27 |
| PSR455 | 1" | 1% | 173 | 250 | 620 | - | 30 |
Other voltages or frequency 60 Hz
Products Description
PSR series pumps are used in domestic and civil applications such as the pressurisation and distribution of water in combination with pressure sets, and in rain water recovery and irrigation systems, etc.

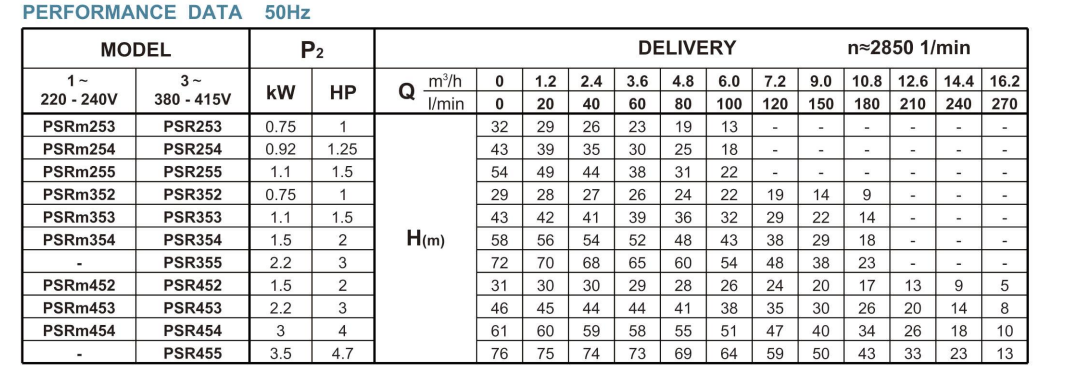

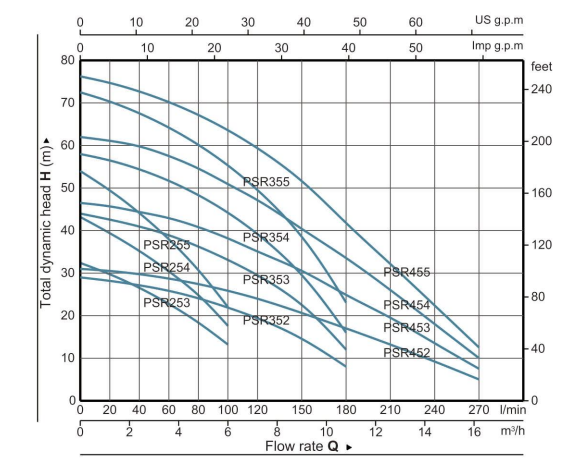

Performance Curve
