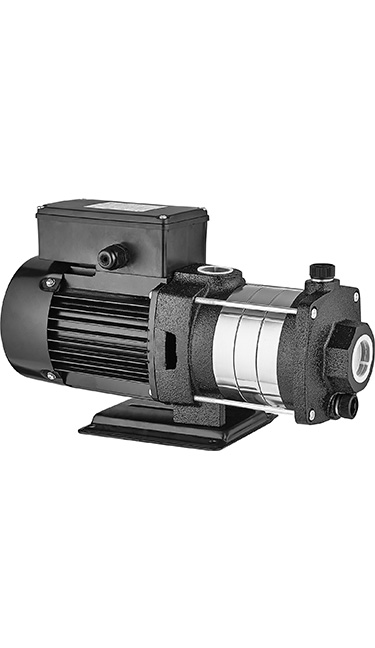

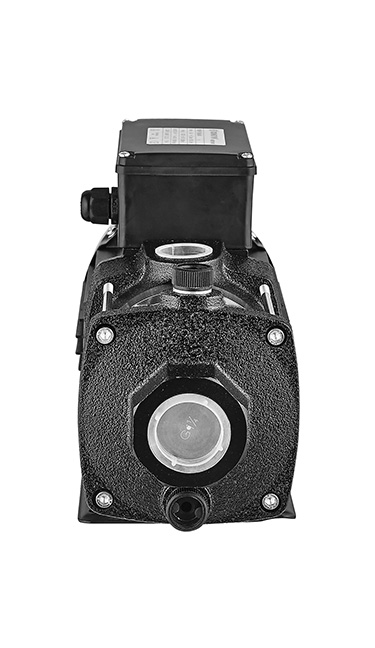

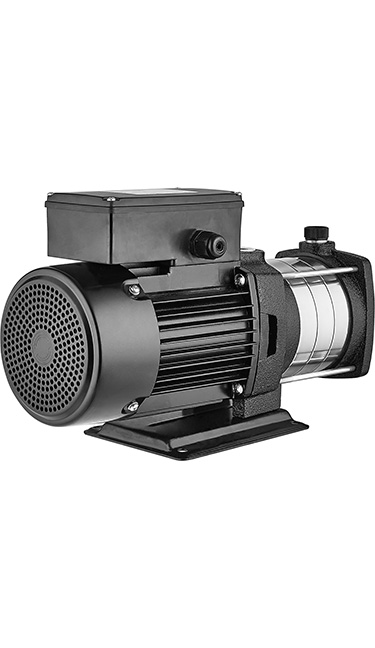

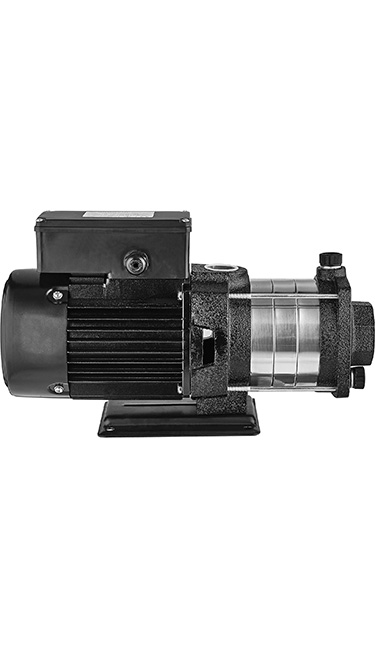

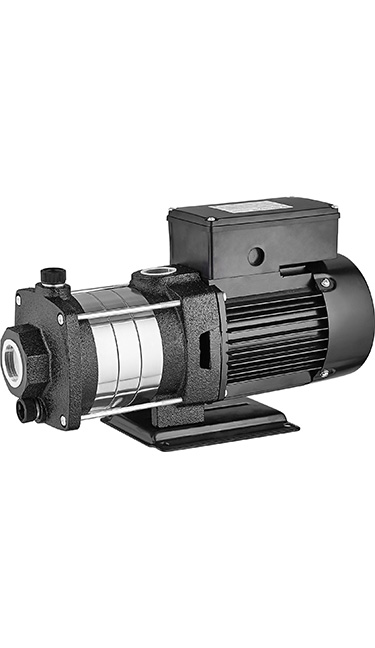

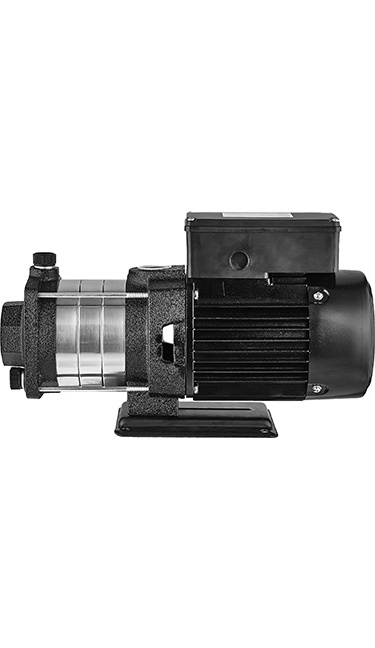

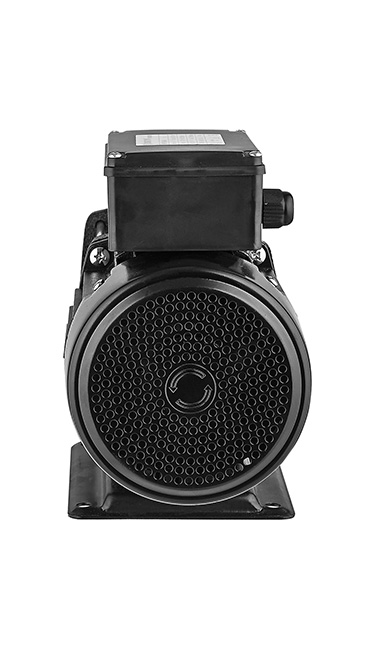

SR Horizontal Multistage Centrifugal Electric Pump
DONGYIN Pump is china top water pump supplier and manufacturer with high quality and performance.
SR stainless steel impeller pump is used in pressure boosting and water supply systems for clean water.
SR series multistage non-self priming centrifugal pump mainly used in industrial field: industrial cleaning, water treatment, agriculture, air-conditioning system, enviromental application etc.
Maximum fluid temperature up to +40°C
Maximum sand content: 0.25%
Maximum suction lift: 8m
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Curve tolerance according to ISO 9906

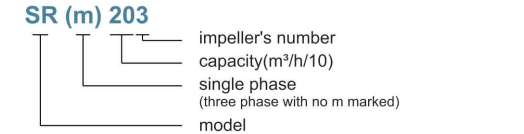

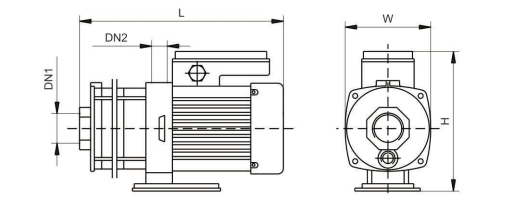

| MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | |||
| W | H | L | 1~ | 3~ | |||
| SR(m)203 | 17 | 1" | 123 | 210 | 342 | 10.5 | 10 |
| SR(m)204 | 19 | 1" | 123 | 210 | 362 | 11 | 10.5 |
| SR(m)205 | 17 | 1" | 123 | 210 | 382 | 11.5 | 11 |
| SR(m)206 | 17 | 1" | 123 | 210 | 437 | 12.5 | 12 |
| SR(m)403 | 19 | 1" | 123 | 210 | 348 | 11 | 10.5 |
| SR(m)404 | 17 | 1" | 123 | 210 | 371 | 12.5 | 12 |
| SR(m)405 | 17 | 1" | 123 | 210 | 429 | 14 | 13.5 |
| SR(m)406 | 1 | 1" | 123 | 210 | 452 | 14.5 | 14 |
| SR(m)603 | 17 | 1" | 123 | 210 | 356 | 13 | 12.5 |
| SR(m)604 | 19 | 1" | 123 | 210 | 418 | 13.5 | 13 |
| SR(m)605 | 1 | 1" | 123 | 210 | 445 | 14.5 | 14 |
| SR(m)606 | 17 | 1" | 123 | 210 | 472 | 15.5 | 14.5 |
Other voltages or frequency 60 Hz
Products Description
SR series multistage non-self priming centrifugal pump mainly used in industrial field: industrial cleaning, water treatment, agriculture, air-conditioning system, enviromental application etc.

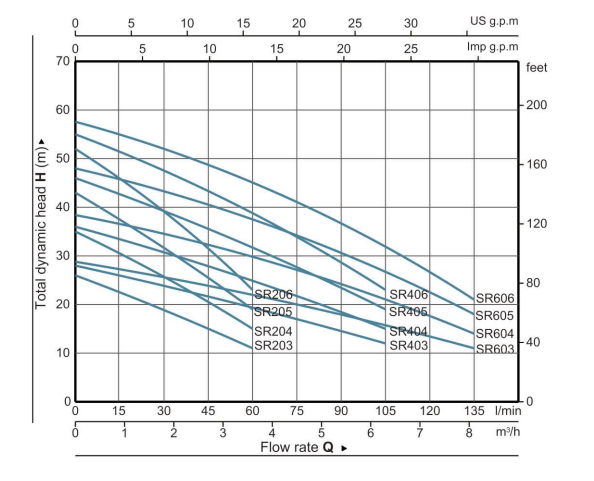

Performance Curve
