For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Maximum fluid temperature up to +40°C
Maximum sand content: 0.25%
Maximum suction lift: 7m
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Curve tolerance according to ISO 9906
Impeller material: brass

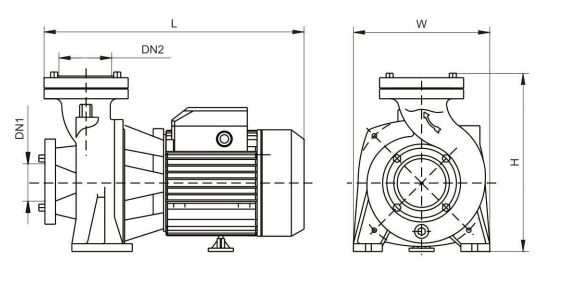

| MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | |||
| W | H | L | 1~ | 3~ | |||
| CPF(m)125/2 | 2" | 2" | 195 | 266 | 352 | 15 | 14 |
| CPF(m)150/2 | 2" | 2" | 243 | 317 | 400 | 21 | 20 |
| CPF(m)200/2 | 2" | 2" | 243 | 317 | 400 | 22 | 21 |
| CPF(m)200/3 | 3" | 3" | 243 | 317 | 400 | 26 | 25 |
| CPF(m)300/3 | 3" | 3" | 243 | 317 | 400 | 27 | 26 |
Special mechanical seal
Other voltages or frequency 60 Hz

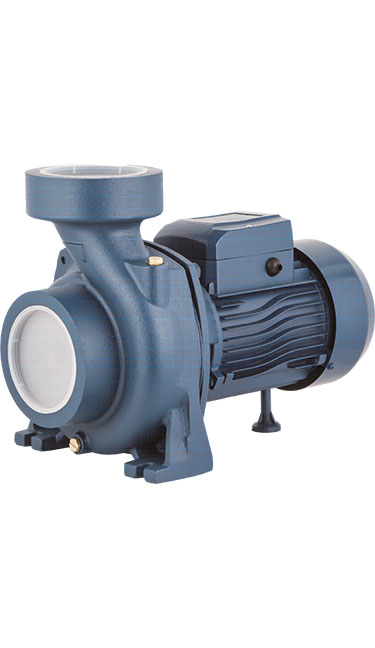

Products Description
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Curve tolerance according to ISO 9906
Impeller material: brass
| MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | |||
| W | H | L | 1~ | 3~ | |||
| CPF(m)125/2 | 2" | 2" | 195 | 266 | 352 | 15 | 14 |
| CPF(m)150/2 | 2" | 2" | 243 | 317 | 400 | 21 | 20 |
| CPF(m)200/2 | 2" | 2" | 243 | 317 | 400 | 22 | 21 |
| CPF(m)200/3 | 3" | 3" | 243 | 317 | 400 | 26 | 25 |
| CPF(m)300/3 | 3" | 3" | 243 | 317 | 400 | 27 | 26 |

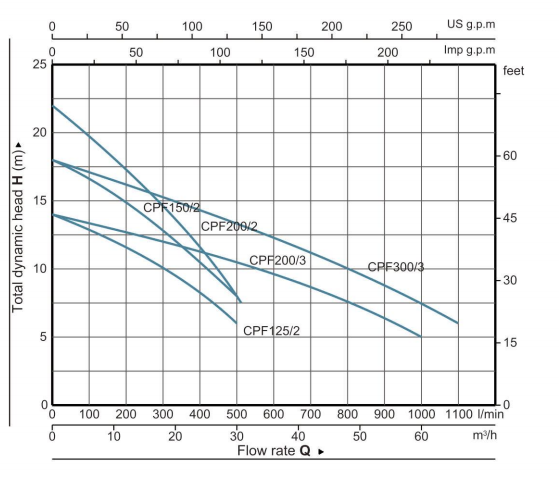

Performance Curve
