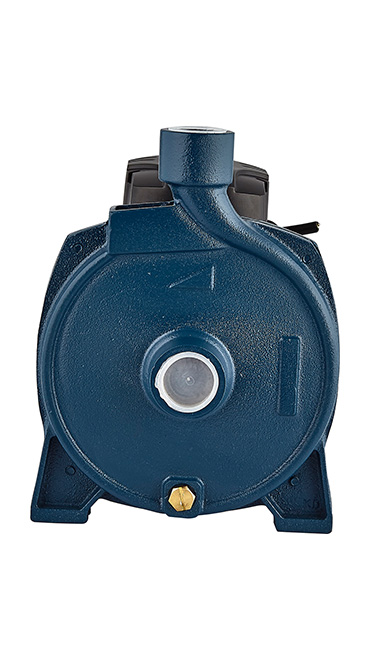

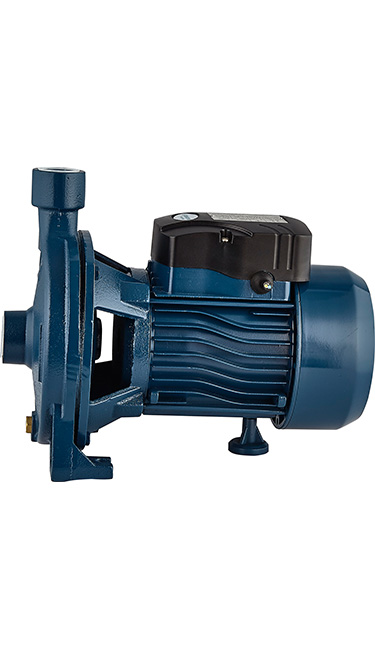

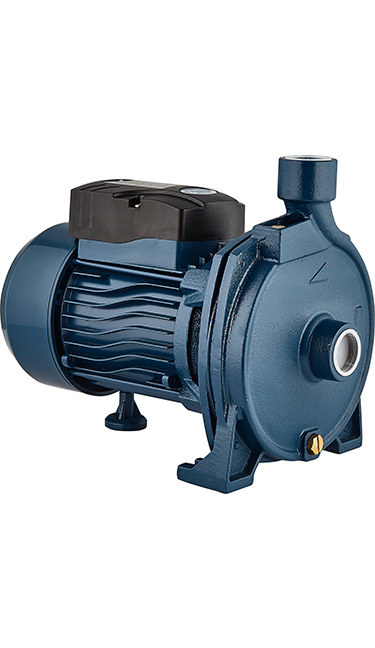

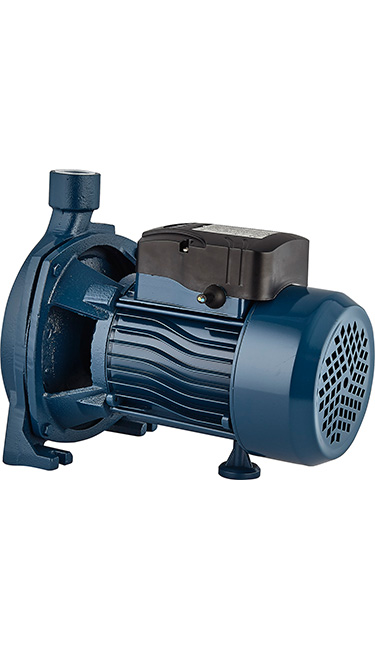

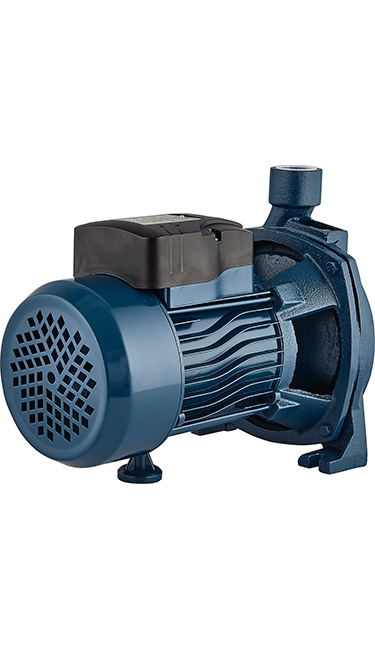

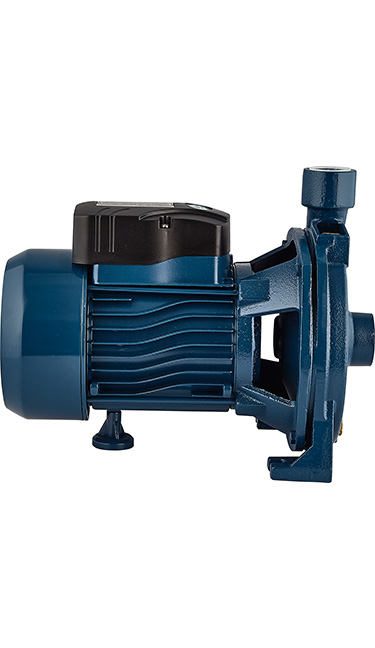

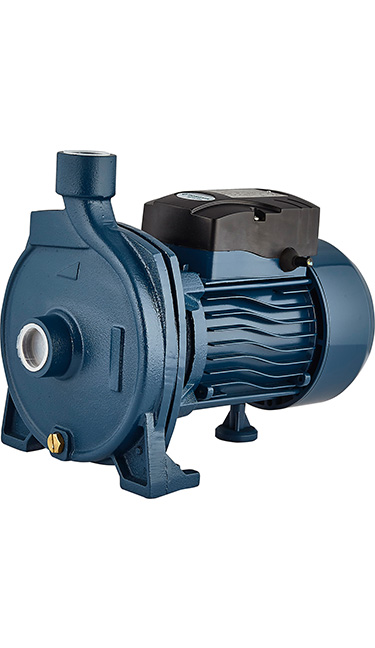

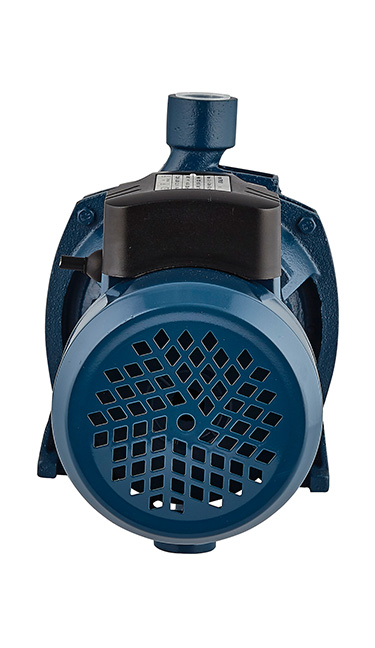

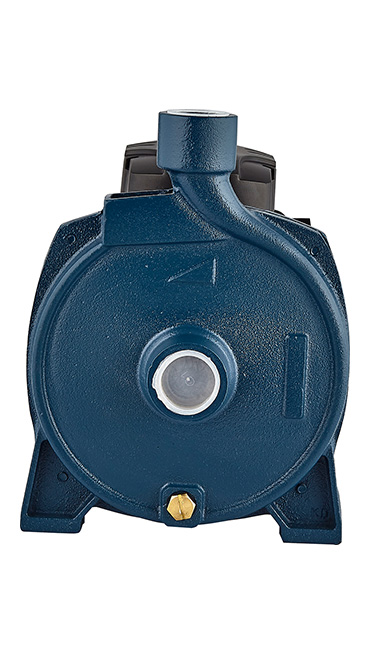

CPM Centrifugal Monoblock Electric Pump
DONGYIN Pump is china top water pump supplier and manufacturer with high quality and performance.
CPm series are single stage centrifugal pumps which are used to transfer clean water.
CPM series are single stage centrifugal pumps,can be used to transfer clean water. It is suitable for industrial use and urban water supply, pressure boosting for high buildings and fire system,garden irrigation,long-distance water transfer,heating ventilation and air controlling,circulation and pressure boosting for cold water,and supporting equipment etc
Maximum fluid temperature up to +40℃
Maximum sand content:0.25%
Maximum suction lift: 9m
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Curve tolerance according to ISO 9906
Impeller material: stainless steel or brass

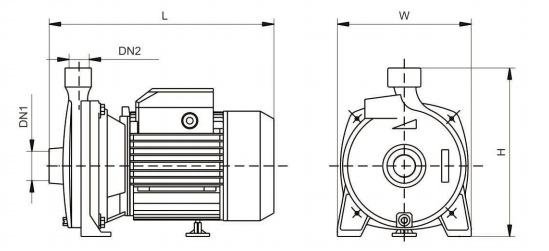

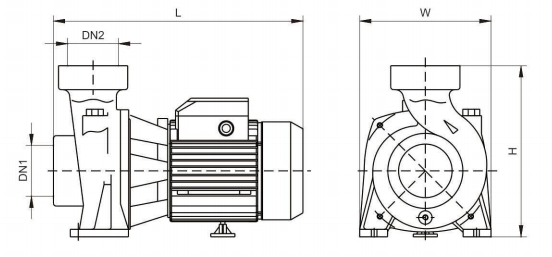

| MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | |||
| W | H | L | 1～ | 3~ | |||

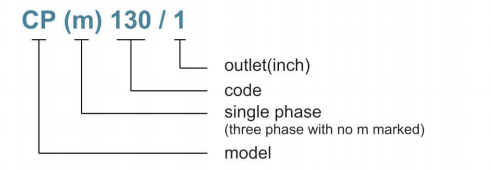

| CP(m)130/1 | 1" | 1" | 168 | 215 | 265 | 8 | 7.5 |
| CP(m)145/1 | 1" | 1" | 195 | 247 | 311 | 11.5 | 11 |
| CP(m)155/1 | 1" | 1" | 195 | 247 | 311 | 12 | 11.5 |
| CP(m)158/1 | 1" | 1" | 195 | 247 | 311 | 12 | 11.5 |
| CP(m)170/1 | 1" | 1" | 204 | 258 | 348 | 19 | 18 |
| CP(m)175/1 | 1% | 1" | 204 | 258 | 348 | 19 | 18 |
| CP(m)190/1 | 17 | 1" | 232 | 287 | 348 | 21.5 | 20.5 |
| MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | |||
| W | H | L | 1～ | 3~ | |||

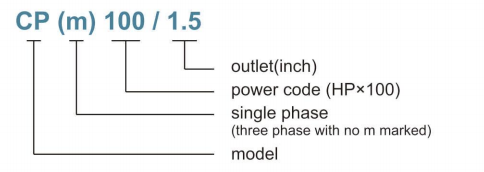

| CP(m)100/1.5 | 1"/2 | 1"/2 | 190 | 246 | 319 | 14 | 13.5 |
| CP(m)150/2 | 2" | 2" | 207 | 259 | 369 | 18 | 17 |
| CP(m)200/2 | 2" | 2" | 207 | 259 | 369 | 19 | 18 |
| CP(m)200/3 | 3" | 3" | 238 | 313 | 392 | 25 | 24 |
| CP(m)300/3 | 3" | 3" | 238 | 313 | 392 | 26 | 25 |
| CP(m)300/4 | 4" | 4" | 238 | 313 | 431 | 29 | 28 |
| CP(m)400/4 | 4" | 4" | 238 | 313 | 431 | 32 | 31 |
Other voltages or frequency 60 Hz
Products Description
CPM series are single stage centrifugal pumps,can be used to transfer clean water. It is suitable for industrial use and urban water supply, pressure boosting for high buildings and fire system,garden irrigation,long-distance water transfer,heating ventilation and air controlling,circulation and pressure boosting for cold water,and supporting equipment etc

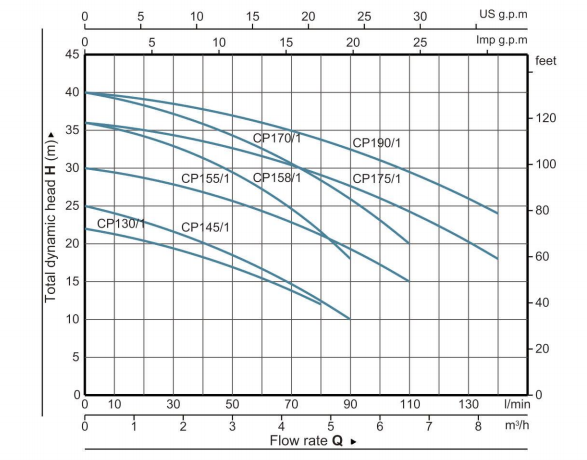

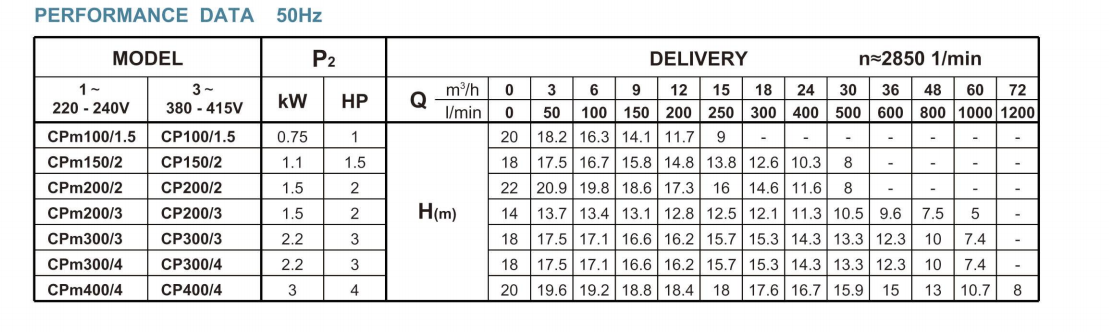

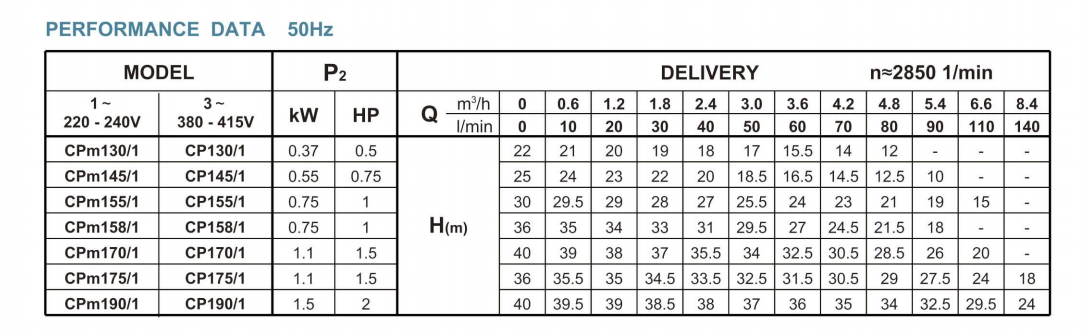

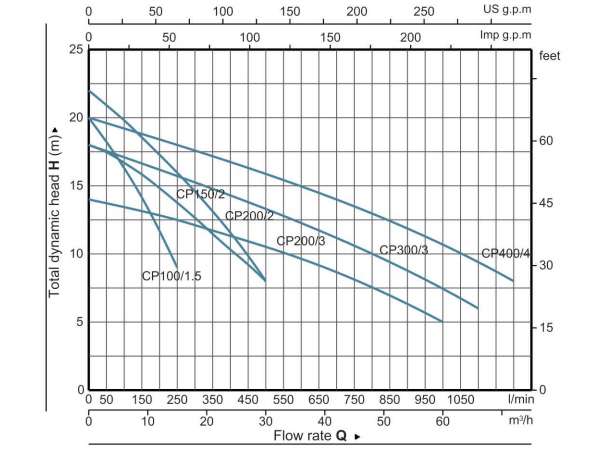

Performance Curve
