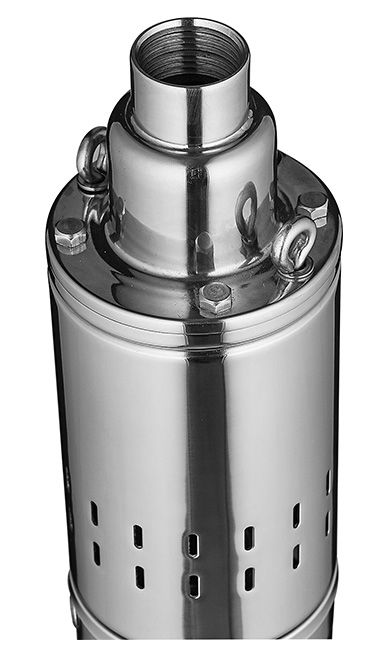

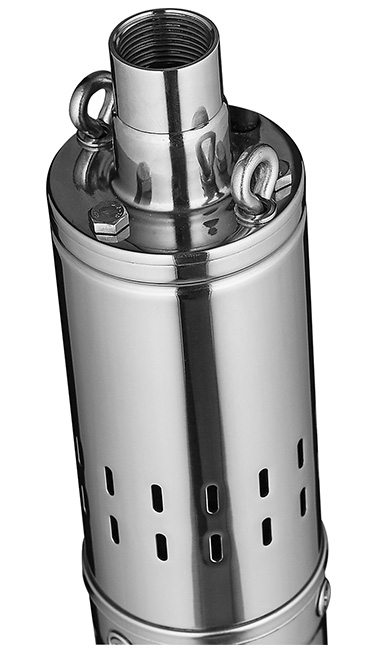

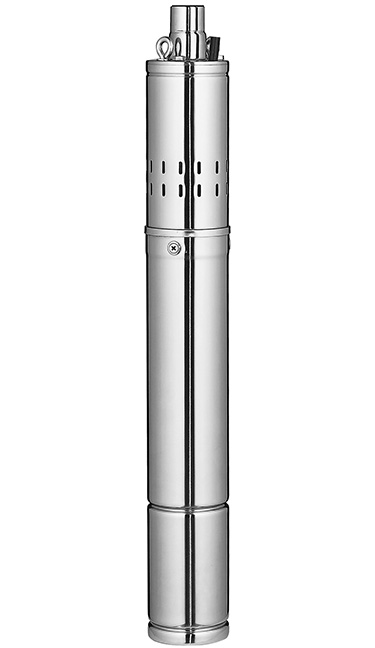

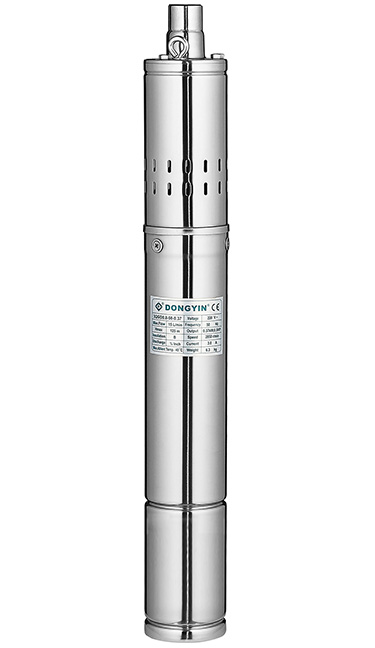

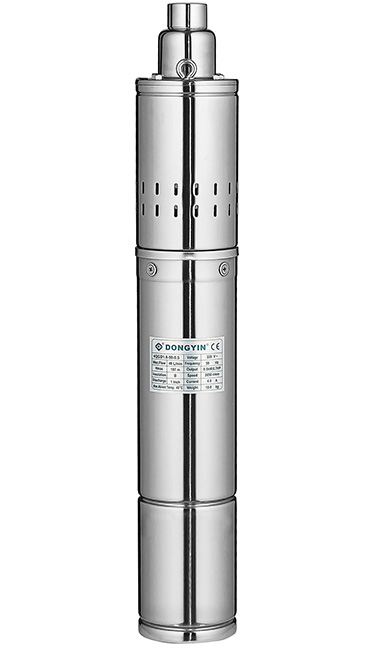

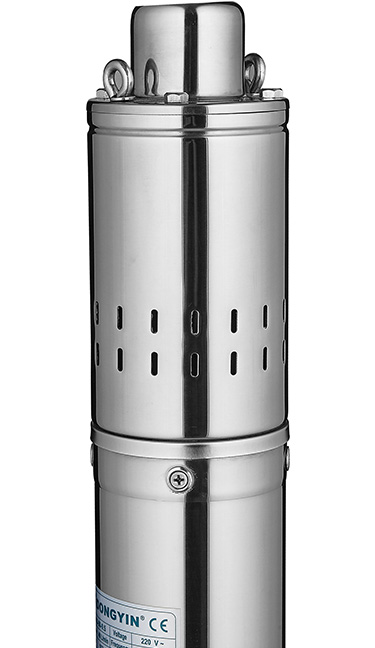

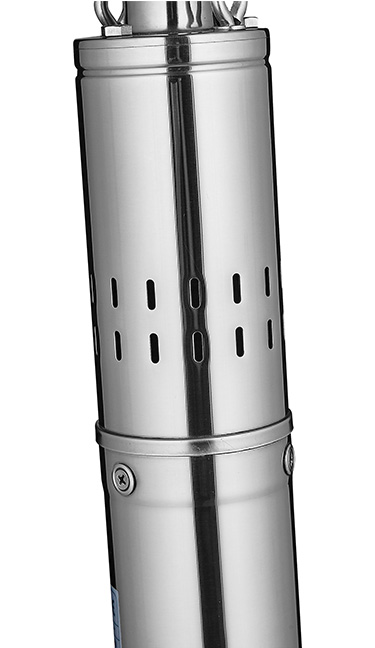

4QG Stainless Steel Screw Submersible Water Pump
DONGYIN Pump provide a wide range of deep well submersible pumps from 2'' to 10'' which are designed for transferring water from wells, ponds, lakes and cisterns.
4QG series are suitable for wells over φ100mm
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Maximum fluid temperature up to +40℃
Maximum sand content: 3%
3QG minimum well diameter:3"
4QG minimum well diameter:4"
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Single phase motor with built-in capacitor
Curve tolerance according to ISO 9906
| Components | Material |
| Delivery casing | AISI 304 SS |
| Strainer | AISI 304 SS |
| Motor extemal casing | AISI304 SS |
| Top chock | Cast-iron ASTM NO.30 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Graphite-Ceramic |
| Shaft | AISI 304 SS-ASTM 5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
Other voltages or frequency 60Hz
External control box for optional
Products Description
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Single phase motor with built-in capacitor
Curve tolerance according to ISO 9906
| Components | Material |
| Delivery casing | AISI 304 SS |
| Strainer | AISI 304 SS |
| Motor extemal casing | AISI304 SS |
| Top chock | Cast-iron ASTM NO.30 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Graphite-Ceramic |
| Shaft | AISI 304 SS-ASTM 5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
Performance Curve
