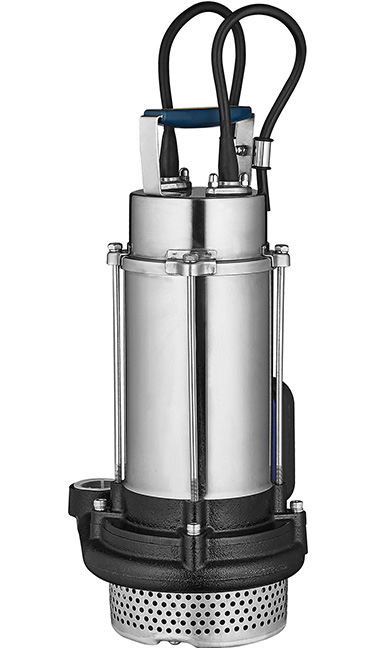

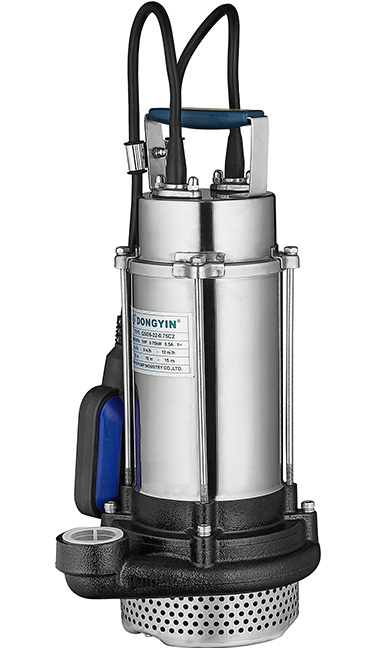

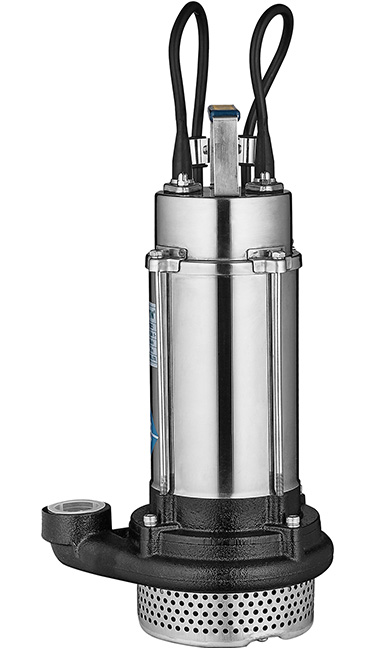

QSD Submersible Pump For Clean Water
DONGYIN Pump is china top water pump supplier and manufacturer with high quality and performance.
QSD submersible pump is household high pressure electric pump for pumping clean liquid.
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
Maximum fluid temperature up to +40℃
Maximum sand content:0.1%
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz

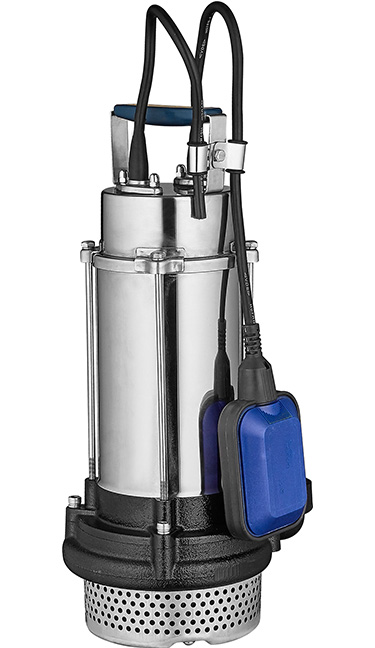

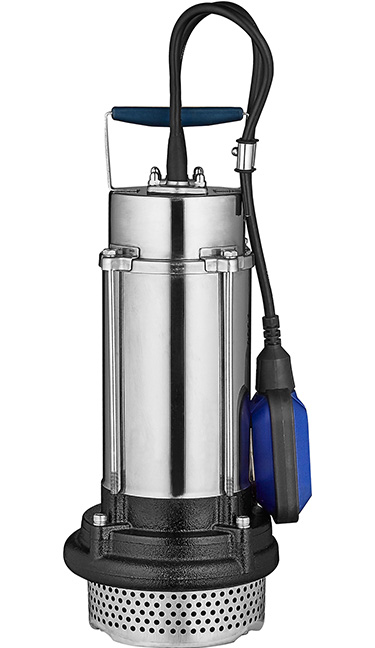

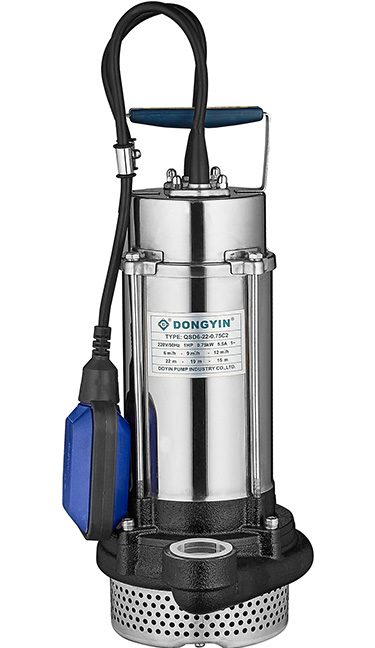

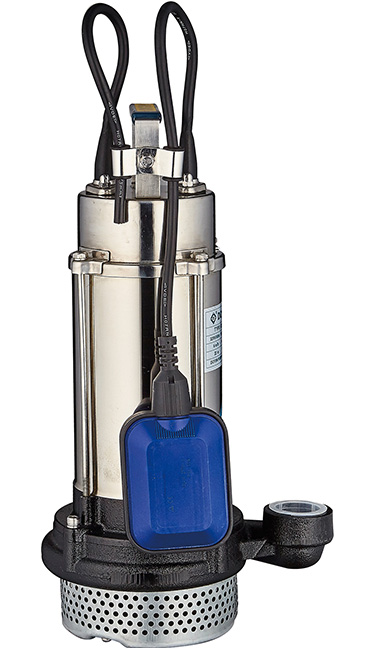

It's available to equip with floating switch
Curve tolerance according to ISO 9906
| Components | Material |
| Impeller | Cast-aluminum |
| Strainer | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top chock | AISI 304 SS |
| Mechanical seal | Graphite-Ceramic |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
Special mechanical seal
Other voltages or frequency 60Hz
Products Description
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
It's available to equip with floating switch
Curve tolerance according to ISO 9906
| Components | Material |
| Impeller | Cast-aluminum |
| Strainer | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top chock | AISI 304 SS |
| Mechanical seal | Graphite-Ceramic |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |

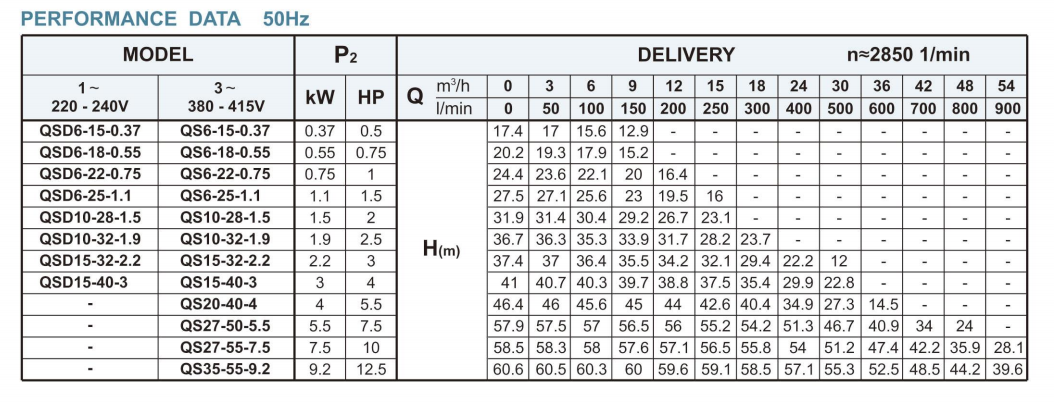

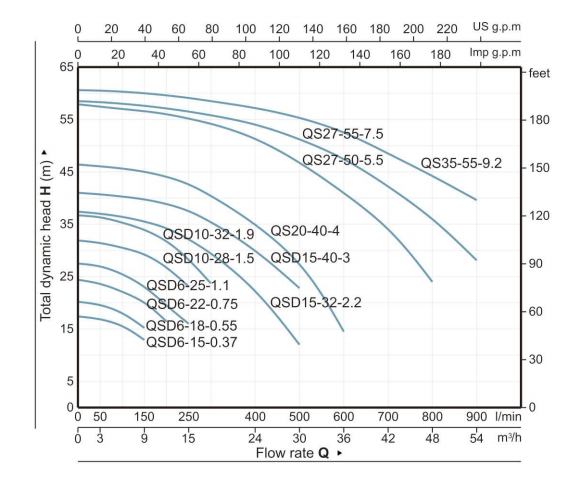

Performance Curve
