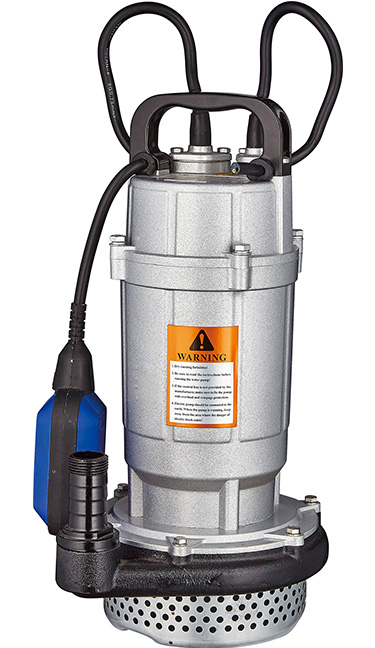

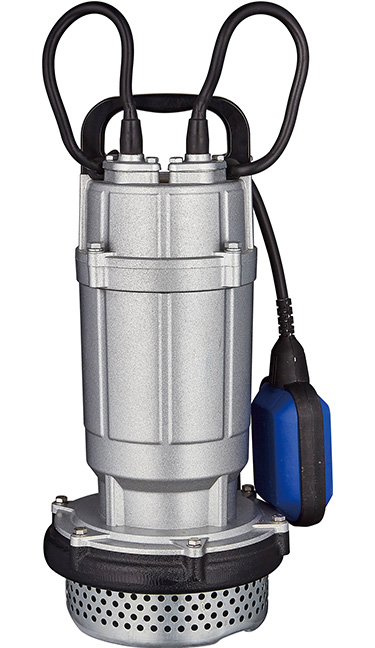

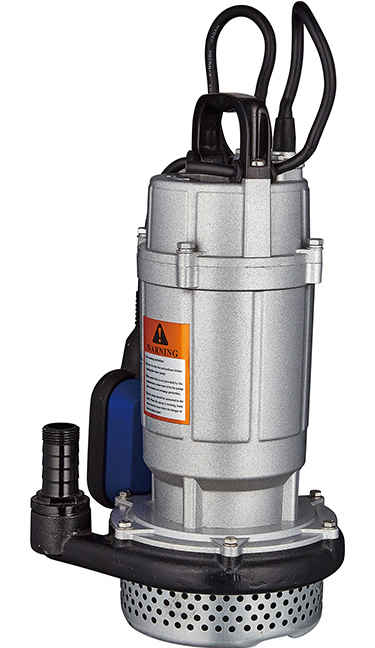

QXD Submersible Pump For Clean Water
DONGYIN Pump is china top water pump supplier and manufacturer with high quality and performance.
QXD submersible pump is household high pressure electric pump for pumping clean liquid.
QXD series submersible clean water pump is small and light, which is widely used in countryside for elevating water from well, irrigation, sprinkling and domestic water supply, and also used in draining off water for fishpond and building site.
Maximum fluid temperature up to +40℃
Maximum sand content:0.1%
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
It's available to equip with floating switch
Curve tolerance according to ISO 9906
| Components | Material |
| Difuser | Cast-iron ASTM NO.30 |
| lmpeller | Cast-aluminum |
| Motor external casing | Cast-aluminum |
| Top chock | Cast-aluminum |
| Mechanical seal | Graphite-Ceramic |
| Shaft | AlSI 304 SS.ASTM5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
Float switch for optional
Other voltages or frequency 60Hz
Products Description
QXD series submersible clean water pump is small and light, which is widely used in countryside for elevating water from well, irrigation, sprinkling and domestic water supply, and also used in draining off water for fishpond and building site.

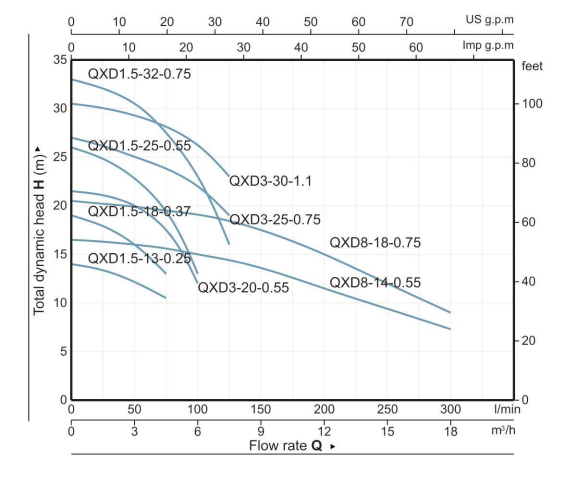

Performance Curve
