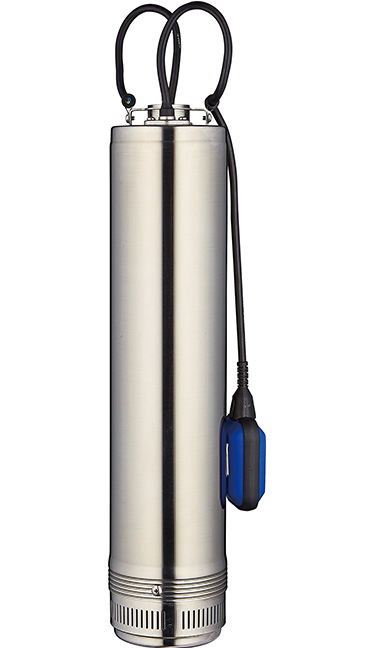

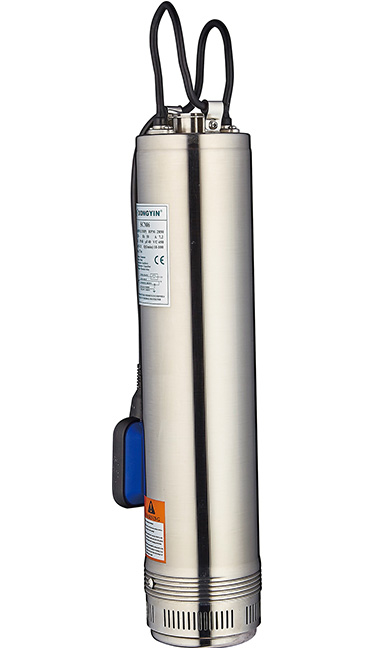

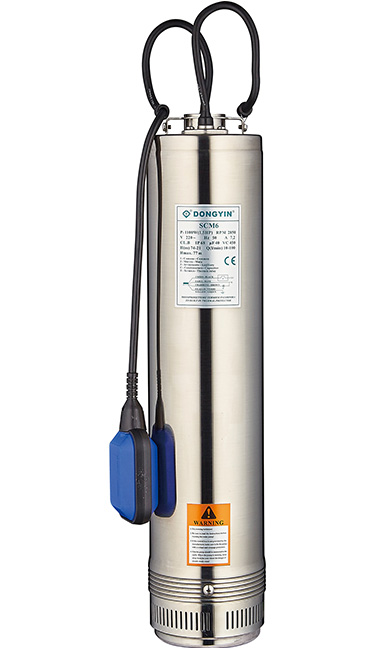

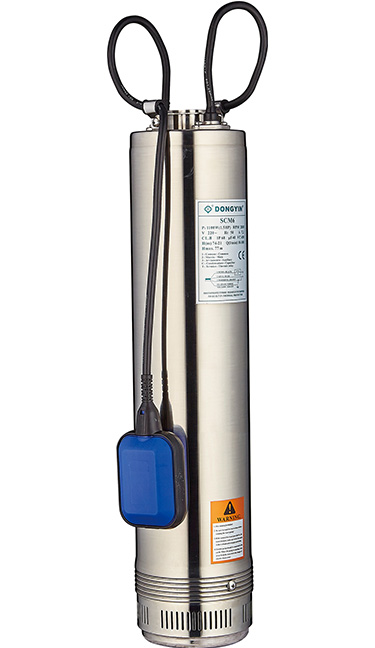

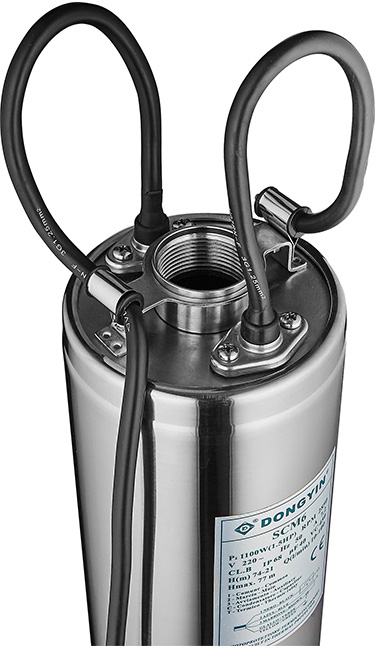

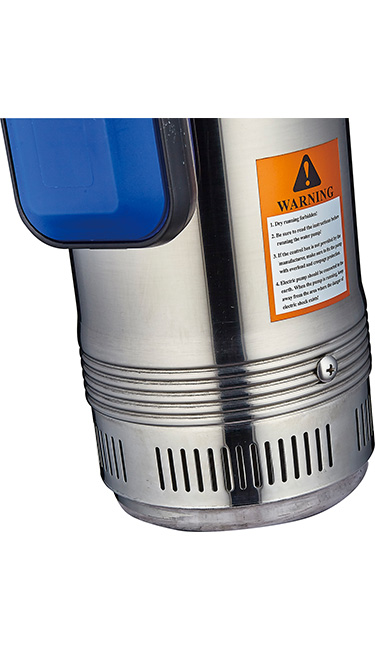

SCM Multistage High Head Submersible Pump
DONGYIN Pump provide a wide range of deep well submersible pumps from 2'' to 10'' which are designed for transferring water from wells, ponds, lakes and cisterns.
SCM series are suitable for wells over φ125mm
SCM series pump is 5inch integrated submersible pump which is designed to pump water from bottom inlet. It is suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.They are easy to use, they are suitable for use in applications such as clearing dirty water,discharging domestic waster water,and for emptying collection traps containing particle up to a maximum of φ35mm.
Maximum liquid temperature +40 °C
Maximum solid particle:φ35mm
Maximum immersion depth of 5 m
Minimum well diameter: 130mm
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Equip with start control box or digital auto-control box
It's available to equip with floating switch
Curve tolerance according to ISO 9906
| Components | Material |
| Pump external casing | AIS 304 SS |
| Delivery casing | AlSI304 SS |
| Suction lantern | AIS 304 SS |
| Diffuser | Plastic.PPO |
| lmpeller | Plastic.PPO |
| Motor external casing | AISI 304 SS |
| Top chock | ①Cast-iron ASTM NO.30 ②AlSI 420 SS |
| Botom support | AISI 304 SS |
| Mechanical seal | Graphite-Ceramic |
| Shaft | AlISI 304 SS-ASTM5140 |
| Seal lubricant oil | Ol for food machinery and pharmaceutic use. |
Other voltages or frequency 60Hz
Single phase with built-in capacitor
Float switch for optional
Products Description
SCM series pump is 5inch integrated submersible pump which is designed to pump water from bottom inlet. It is suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.They are easy to use, they are suitable for use in applications such as clearing dirty water,discharging domestic waster water,and for emptying collection traps containing particle up to a maximum of φ35mm.
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Equip with start control box or digital auto-control box
It's available to equip with floating switch
Curve tolerance according to ISO 9906
| Components | Material |
| Pump external casing | AIS 304 SS |
| Delivery casing | AlSI304 SS |
| Suction lantern | AIS 304 SS |
| Diffuser | Plastic.PPO |
| lmpeller | Plastic.PPO |
| Motor external casing | AISI 304 SS |
| Top chock | ①Cast-iron ASTM NO.30 ②AlSI 420 SS |
| Botom support | AISI 304 SS |
| Mechanical seal | Graphite-Ceramic |
| Shaft | AlISI 304 SS-ASTM5140 |
| Seal lubricant oil | Ol for food machinery and pharmaceutic use. |

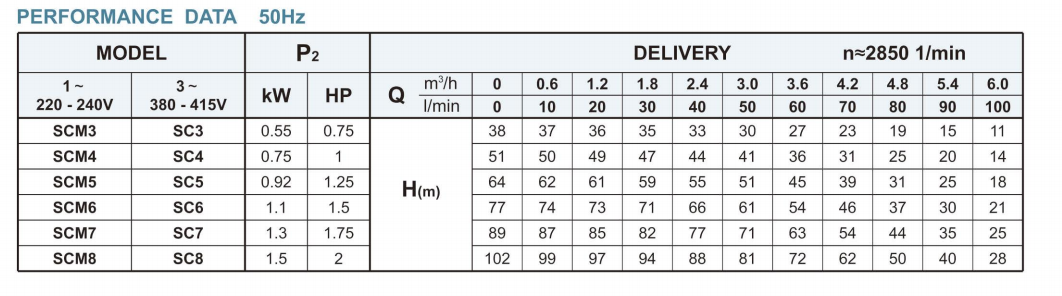

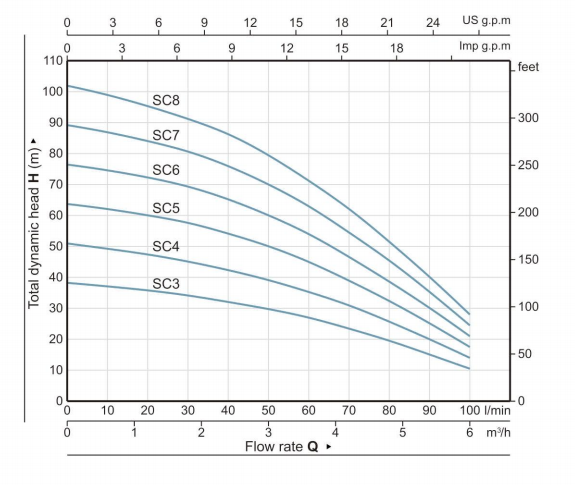

Performance Curve
