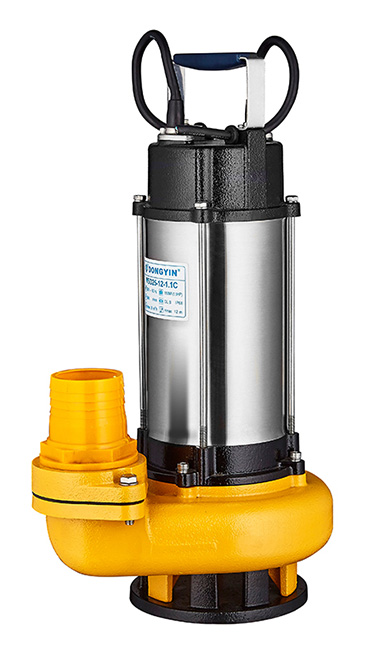

WSD Sump Submersible Clean/Dirty Water Pump
DONGYIN Pump is china top water pump supplier and manufacturer with high quality and performance.
WSD series provides high flow and quick drainage for the submersible sump pump in low noise.
The WSD series submersible sewage water pump is suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.They are easy to use, they are suitable for use in applications such as clearing dirty water,discharging domestic waster water,and for emptying collection traps containing particle up to a maximum of 35mm.
Maximum fluid temperature up to +40℃
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
It's available to equip with floating switch
It can work in water containing fiber
Curve tolerance according to ISO 9906
| Components | Material |
| Motor external casing | AlSI 304 SS |
| Mechanical seal | Graphite-Ceramic |
| Shaft | AISI 304 SS.ASTM5140 |
| Seal ubricant oil | Oil for food machinery and pharmaceutic use. |
Other voltages or frequency 60Hz
Float switch for optional
Products Description
The WSD series submersible sewage water pump is suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.They are easy to use, they are suitable for use in applications such as clearing dirty water,discharging domestic waster water,and for emptying collection traps containing particle up to a maximum of 35mm.

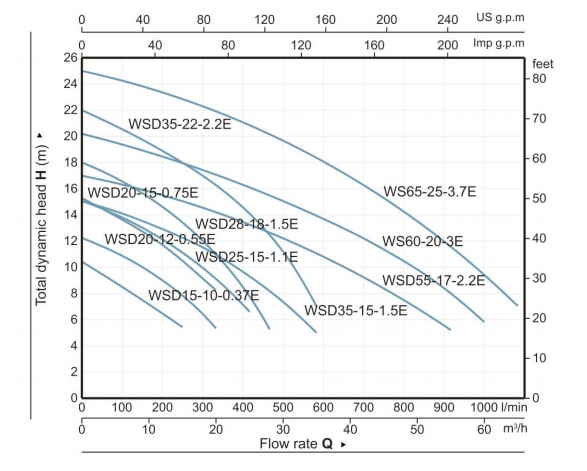

Performance Curve
