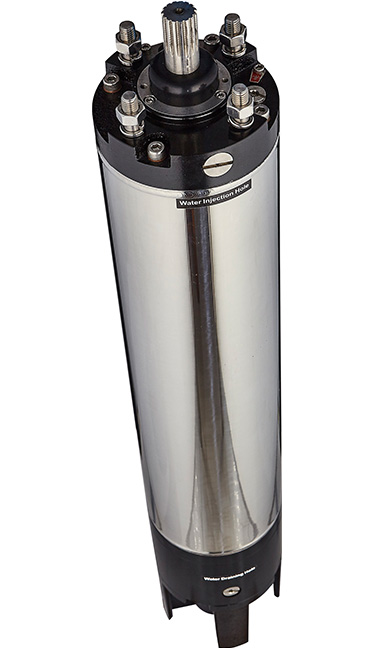

6HC Water Filled Submersible Motor
DONGYIN Pump provide a wide range of deep well submersible pumps from 2'' to 10'' which are designed for tranfering water from wells, ponds, lakes and cisterns.
6HC series motors are suitable for wells over φ150mm
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Speed:2850rpm
Insulation class:F
Protection grade:IP 68
Maximum fluid temperature up to +35°C
Minimum well diameter: 6"
Rewindable motor
Three-phase:380-415V/50Hz
①Direct start (1 cable)
②Star-delta start (2 cables)
Equip with start control box or digital auto-control box
NEMA dimension standards
| Components | Material |
| Motor external casing | AISI 304 SS |
| Top chock | Cast-iron ASTM N0.30 |
| Bottom support | Cast-iron ASTM N0.30 |
| Seal | NBR Carbon-SIC/TC |
| Shaft | AISI304 SS-AISI420 |
| Thrust bearing | AISI420 |
| Radial bearing | Carbon with antimony |
Special mechanical seal
Other voltages or frequency 60Hz
Products Description
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Features
Rewindable motor
Three-phase:380-415V/50Hz
①Direct start (1 cable)
②Star-delta start (2 cables)
Equip with start control box or digital auto-control box
NEMA dimension standards
| Components | Material |
| Motor external casing | AISI 304 SS |
| Top chock | Cast-iron ASTM N0.30 |
| Bottom support | Cast-iron ASTM N0.30 |
| Seal | NBR Carbon-SIC/TC |
| Shaft | AISI304 SS-AISI420 |
| Thrust bearing | AISI420 |
| Radial bearing | Carbon with antimony |

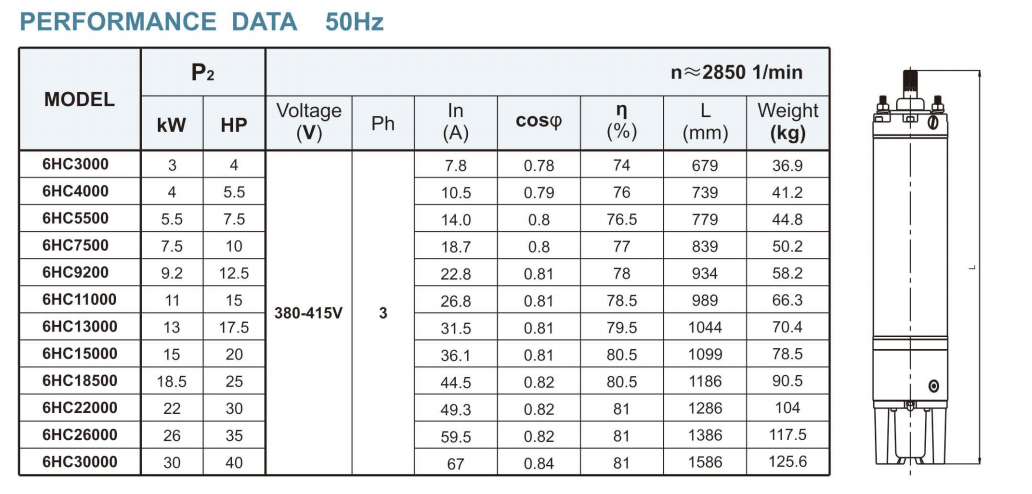

Performance Curve
