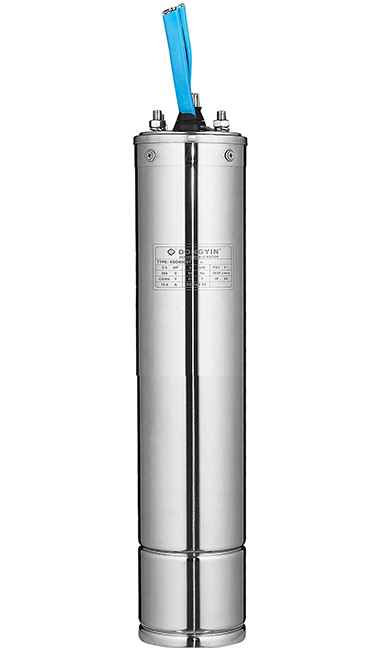

5YS Oil filled Submersible Motor
DONGYIN Pump provide a wide range of deep well submersible pumps from 2'' to 10'' which are designed for tranfering water from wells, ponds, lakes and cisterns.
5YS series motors are suitable for wells over φ130mm
For water supply from wells or reservoirs
For domestic use,for civil and industrial applications
For garden use and irrigation
Speed: 2850rpm
Insulation class: F Protection grade: IP 68
Maximum fluid temperature up to +35°C
Minimum well diameter: 5"
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase: 380-415V/50Hz
Equip with start control box or digital auto-control box
Components | Material |
Motor external casing | AISI 304 SS |
Top chock | ①Cast-iron ASTM N0.30 |
②Cast-Cu ASTM C85500 | |
Bottom support | AISI 304 SS |
Mechanical seal | Special seal for deep well(Graphite-Ceramic) |
Shaft | AISI304 SS-ASTM 5140 |
Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
Special mechanical seal
Other voltages or frequency 60Hz
Products Description
For water supply from wells or reservoirs
For domestic use,for civil and industrial applications
For garden use and irrigation
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase: 380-415V/50Hz
Equip with start control box or digital auto-control box
Components | Material |
Motor external casing | AISI 304 SS |
Top chock | ①Cast-iron ASTM N0.30 |
②Cast-Cu ASTM C85500 | |
Bottom support | AISI 304 SS |
Mechanical seal | Special seal for deep well(Graphite-Ceramic) |
Shaft | AISI304 SS-ASTM 5140 |
Seal lubricant oil | Oil for food machinery and pharmaceutic use. |

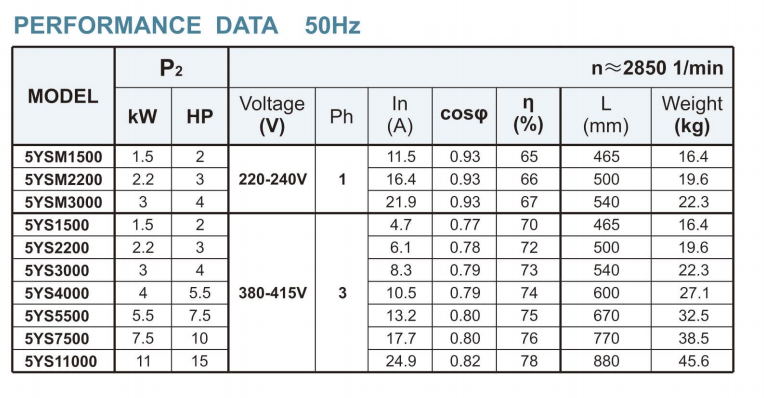

Performance Curve
