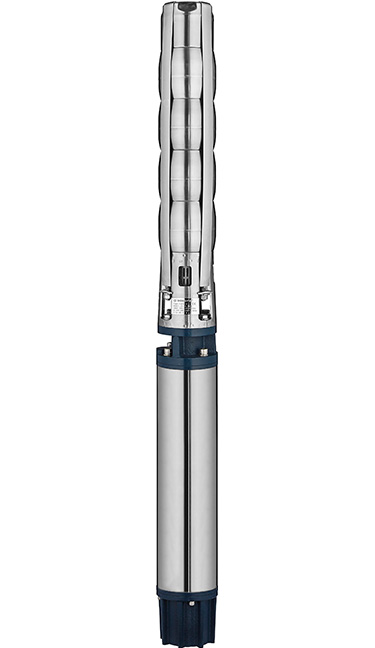

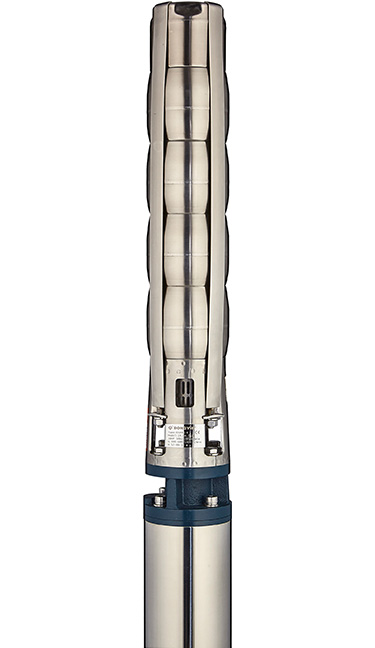

6SP Submersible Deep Well Pump
DONGYIN Pump provide a wide range of deep well submersible pumps from 2'' to 10'' which are designed for tranfering water from wells, ponds, lakes and cisterns.
6SP staineless steel series are suitable for wells over φ150mm
6SP deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for pressure boosters, firefighting systems, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.
Maximum liquid temperature +35 °C
Maximum sand content:0.25%
Maximum immersion depth of 80 m
Minimum well diameter:150mm
Installation: vertical

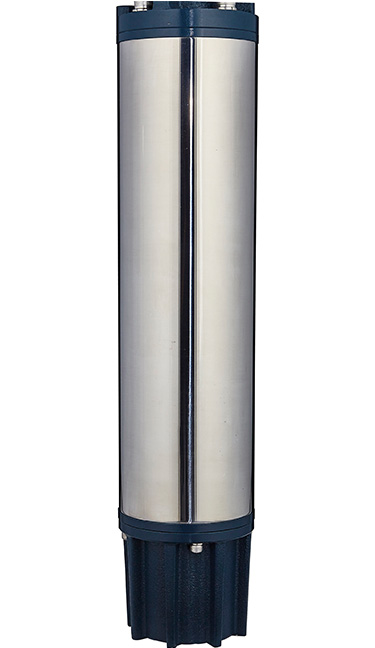

Rewindable oil-filled motor 50/60Hz
Pump sizes for connecting to motor according to NEMA standards
High quality shaft bearings providing low friction and high wear resistance
Strong stainless-steel drive shaft ensures positive impeller drive and longer life
Insulation: class F
Protection: IP 68
| Components | Material |
| Dellvery casing | AlSI304 SS |
| Suction lantern | AlSI304 SS |
| Diffuser | AlSI304 SS |
| Impeller | AISI 304 SS |
| Shaft | AISI431 SS |
| Shaft coupling | AISI304 SS |
| Wear ring | Rubber |
| Motor extemnal casing | AISI 304 SS |
| Top chock | Cast-iron ASTM N0.30 |
| Bottom support | Cast-iron ASTM N0.30 |
| Seal | NBR Graphite-SIC/TC |
| Shaft | AISI 304 SS-ASTM5140 |
Other voltages or frequency 60Hz
Products Description
6SP deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for pressure boosters, firefighting systems, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.
Features
Rewindable oil-filled motor 50/60Hz
Pump sizes for connecting to motor according to NEMA standards
High quality shaft bearings providing low friction and high wear resistance
Strong stainless-steel drive shaft ensures positive impeller drive and longer life
Insulation: class F
Protection: IP 68
| Components | Material |
| Dellvery casing | AlSI304 SS |
| Suction lantern | AlSI304 SS |
| Diffuser | AlSI304 SS |
| Impeller | AISI 304 SS |
| Shaft | AISI431 SS |
| Shaft coupling | AISI304 SS |
| Wear ring | Rubber |
| Motor extemnal casing | AISI 304 SS |
| Top chock | Cast-iron ASTM N0.30 |
| Bottom support | Cast-iron ASTM N0.30 |
| Seal | NBR Graphite-SIC/TC |
| Shaft | AISI 304 SS-ASTM5140 |

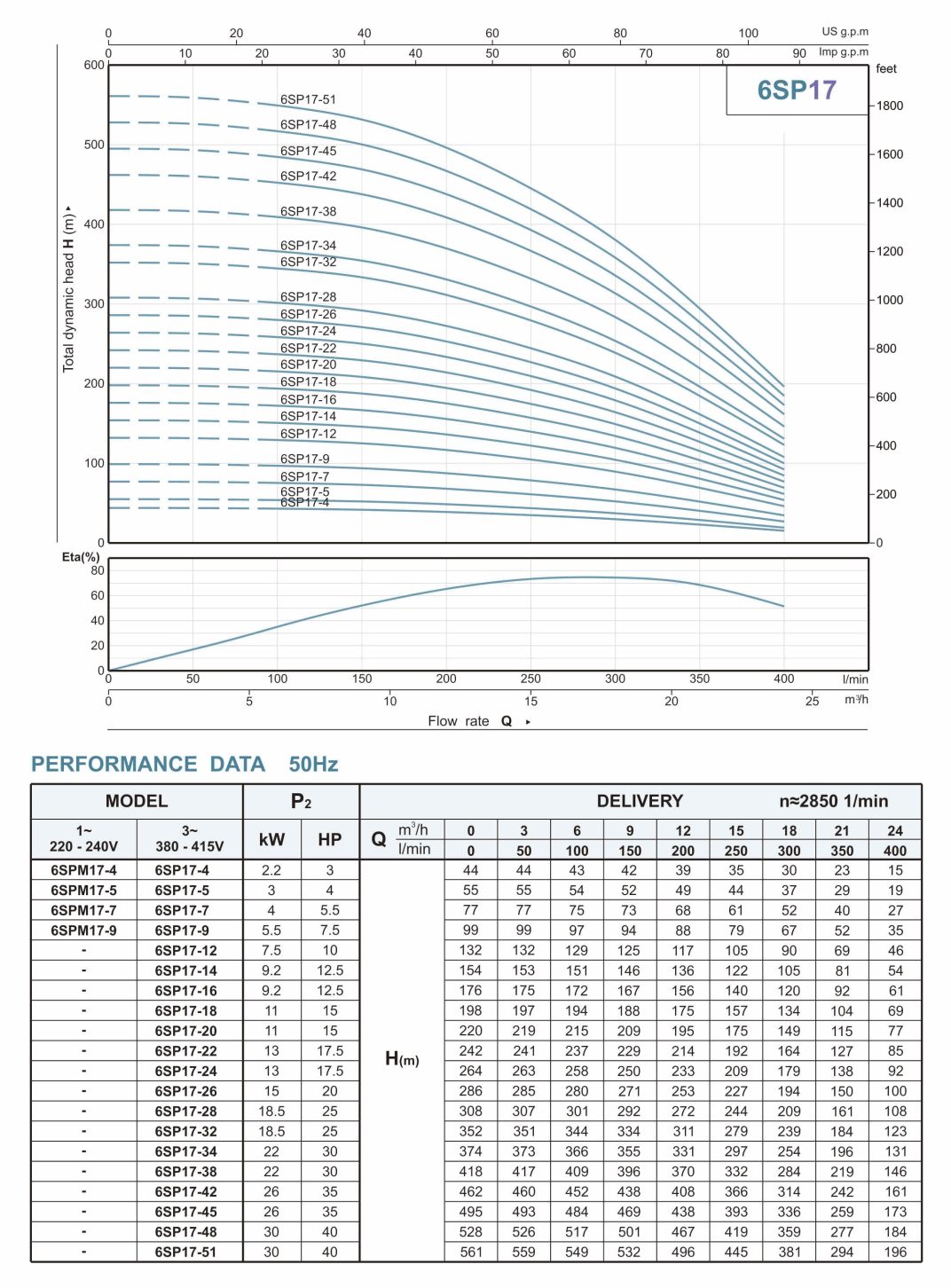

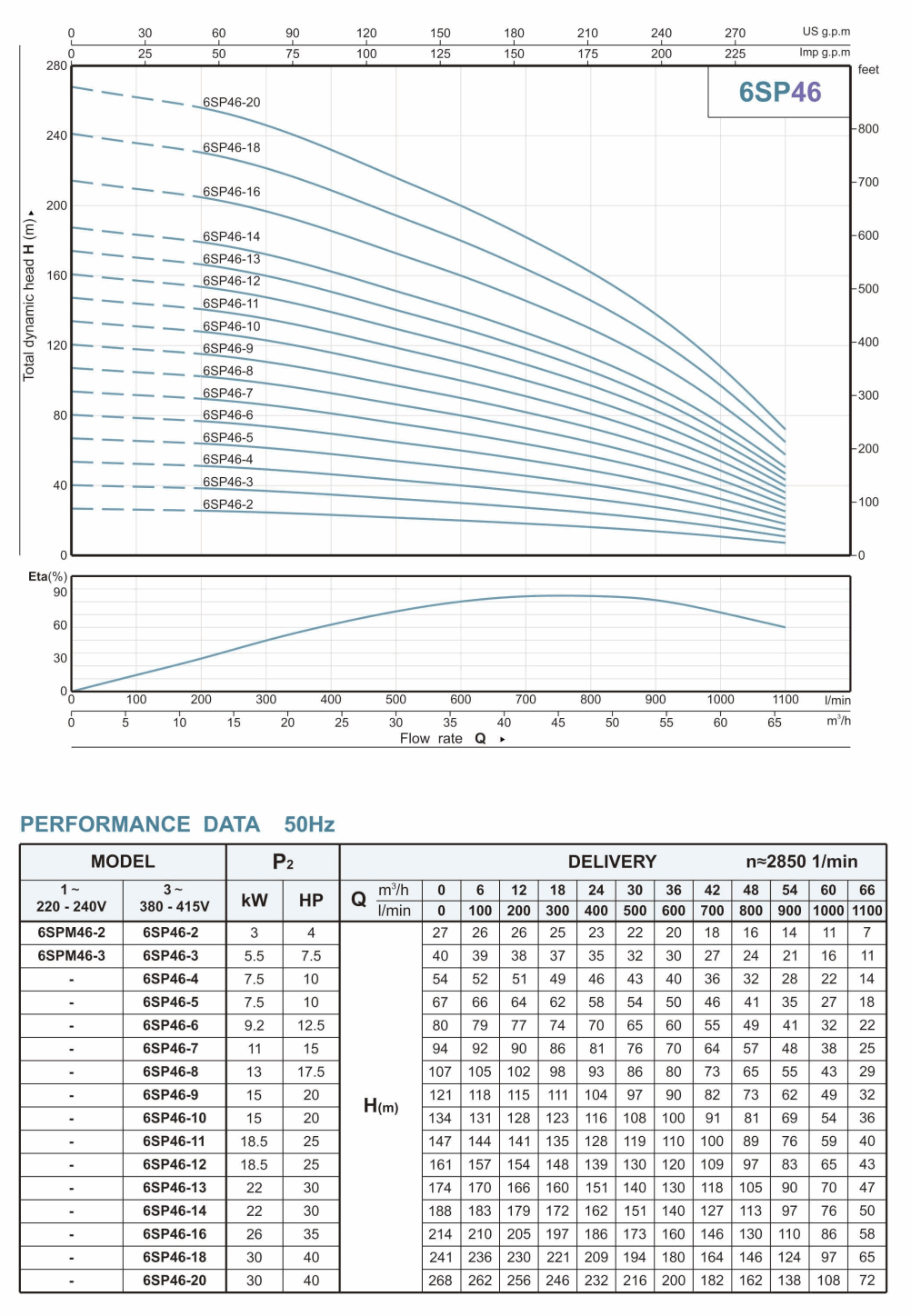

Performance Curve
