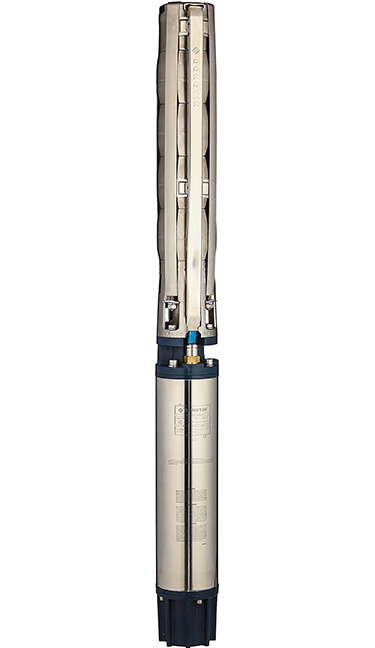

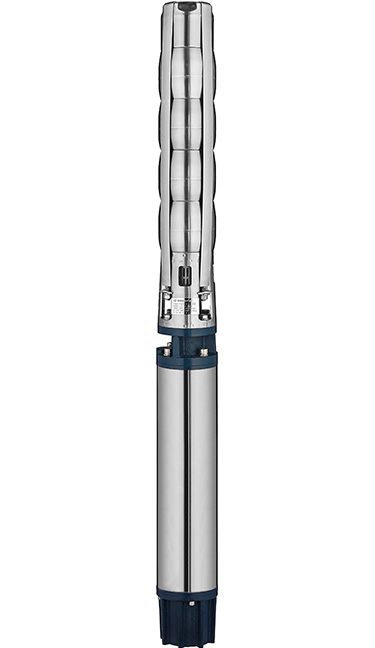

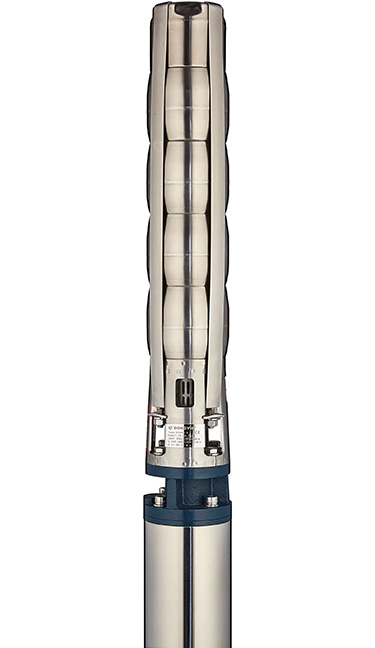

6SP Deep Well Submersible Pump
DONGYIN Pump provide a wide range of deep well submersible pumps from 2'' to 10'' which are designed for tranfering water from wells, ponds, lakes and cisterns.
6SP series are suitable for wells over φ150mm
6SP deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for pressure boosters, firefighting systems, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.
Maximum fluid temperature up to +50℃
Maximum sand content:0.25%
Minimum well diameter:6"

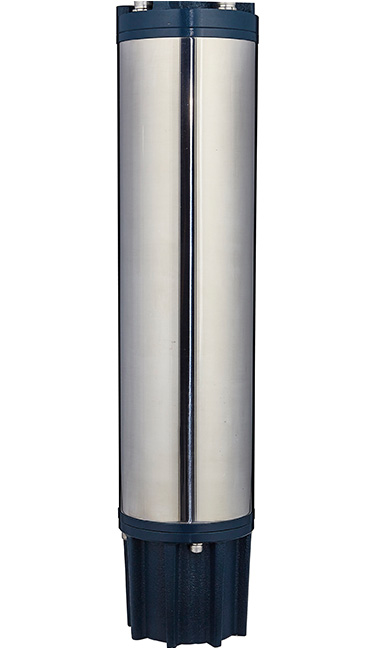

Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
①Direct start (1 cable)
②Star-delta start (2 cables)
Equip with start control box or digital auto-control box
NEMA dimension standards
Curve tolerance according to ISO 9906
| Components | Material |
| Dellvery casing | AlSI304 SS |
| Suction lantern | AlSI304 SS |
| Diffuser | AlSI304 SS |
| Impeller | AISI 304 SS |
| Shaft | AISI431 SS |
| Shaft coupling | AISI304 SS |
| Wear ring | Rubber |
| Motor extemnal casing | AISI 304 SS |
| Top chock | Cast-iron ASTM N0.30 |
| Bottom support | Cast-iron ASTM N0.30 |
| Seal | NBR Graphite-SIC/TC |
| Shaft | AISI 304 SS-ASTM5140 |
Other voltages or frequency 60Hz
Products Description
6SP deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for pressure boosters, firefighting systems, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
①Direct start (1 cable)
②Star-delta start (2 cables)
Equip with start control box or digital auto-control box
NEMA dimension standards
Curve tolerance according to ISO 9906
| Components | Material |
| Dellvery casing | AlSI304 SS |
| Suction lantern | AlSI304 SS |
| Diffuser | AlSI304 SS |
| Impeller | AISI 304 SS |
| Shaft | AISI431 SS |
| Shaft coupling | AISI304 SS |
| Wear ring | Rubber |
| Motor extemnal casing | AISI 304 SS |
| Top chock | Cast-iron ASTM N0.30 |
| Bottom support | Cast-iron ASTM N0.30 |
| Seal | NBR Graphite-SIC/TC |
| Shaft | AISI 304 SS-ASTM5140 |
Performance Curve
