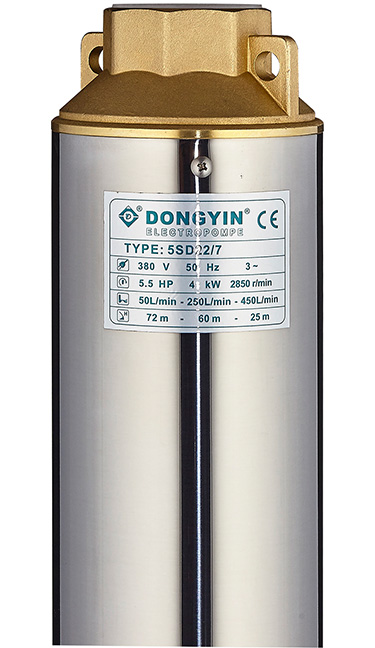

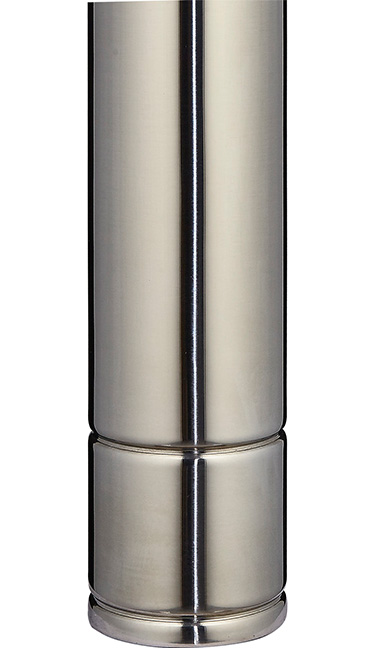

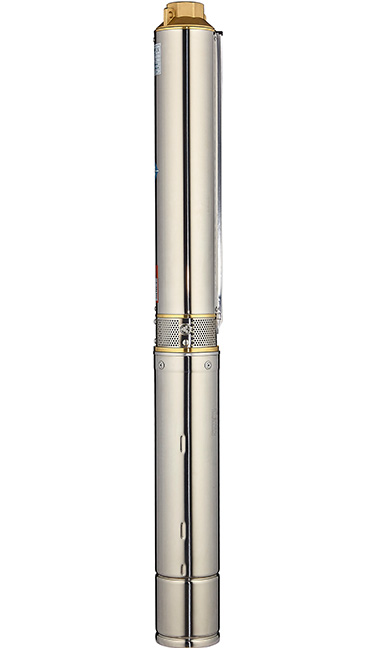

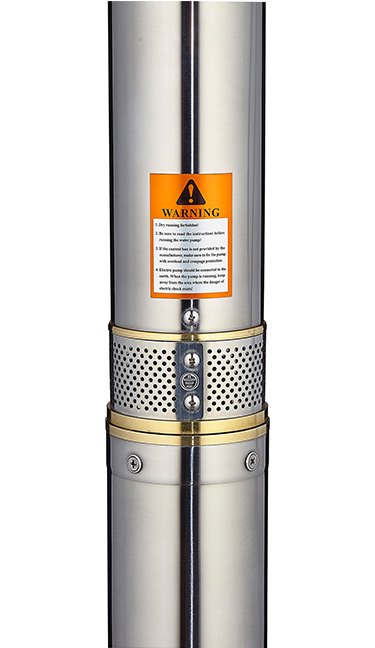

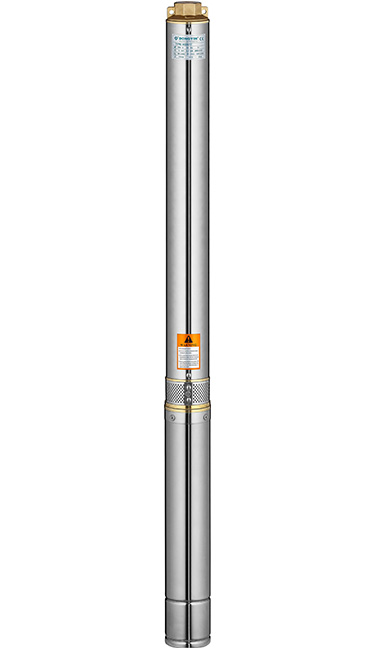

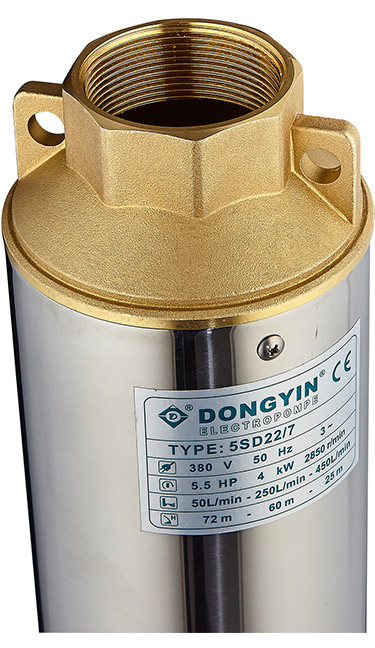

5SD Submersible Deep Well Pump
DONGYIN Pump provide a wide range of deep well submersible pumps from 2'' to 10'' which are designed for tranfering water from wells, ponds, lakes and cisterns.
5SD series are suitable for wells over φ130mm
5SD deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for pressure boosters, firefighting systems, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation
Maximum fluid temperature up to +35℃
Maximum sand content:0.25%
Minimum well diameter:5"
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Equip with start control box or digital auto-control box
Curve tolerance according to ISO 9906
| Components | Material |
| Pump external casing | AISI304 SS |
| Delivery casing | ①Cast-Cu ASTM C85500 ②AISI 304 SS |
| Suction lantern | ①Cast-Cu ASTM C85500 ②AISI 304 SS |
| Difuser | Plastic.PC |
| lmpeller | Plastic.POM |
| Shaft | AlSI304 SS |
| Shaft coupling | AISI 304 SS |
| Wear ring | AlSI 304 SS |
| Motor external casing | AISI 304 SS |
| Top chock | Cast-Cu ASTM C85500 |
| Cast-iron ASTM NO.30 | |
| Bottom support | AlISI 304 SS |
| Mechanical seal | Special seal for deep wel(Graphite-Ceramic) |
| Shaft | AISI 304 SS-ASTM5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceuic use. |

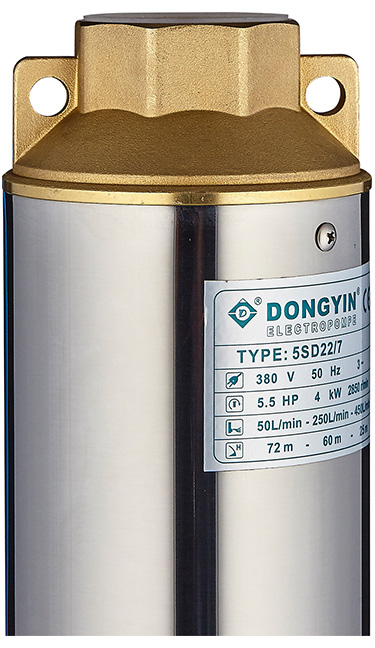

Top chuck is available with brass or SS304
Delivery casing, Inlet parts are available SS304
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Products Description
5SD deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for pressure boosters, firefighting systems, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Equip with start control box or digital auto-control box
Curve tolerance according to ISO 9906
| Components | Material |
| Pump external casing | AISI304 SS |
| Delivery casing | ①Cast-Cu ASTM C85500 ②AISI 304 SS |
| Suction lantern | ①Cast-Cu ASTM C85500 ②AISI 304 SS |
| Difuser | Plastic.PC |
| lmpeller | Plastic.POM |
| Shaft | AlSI304 SS |
| Shaft coupling | AISI 304 SS |
| Wear ring | AlSI 304 SS |
| Motor external casing | AISI 304 SS |
| Top chock | Cast-Cu ASTM C85500 |
| Cast-iron ASTM NO.30 | |
| Bottom support | AlISI 304 SS |
| Mechanical seal | Special seal for deep wel(Graphite-Ceramic) |
| Shaft | AISI 304 SS-ASTM5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceuic use. |

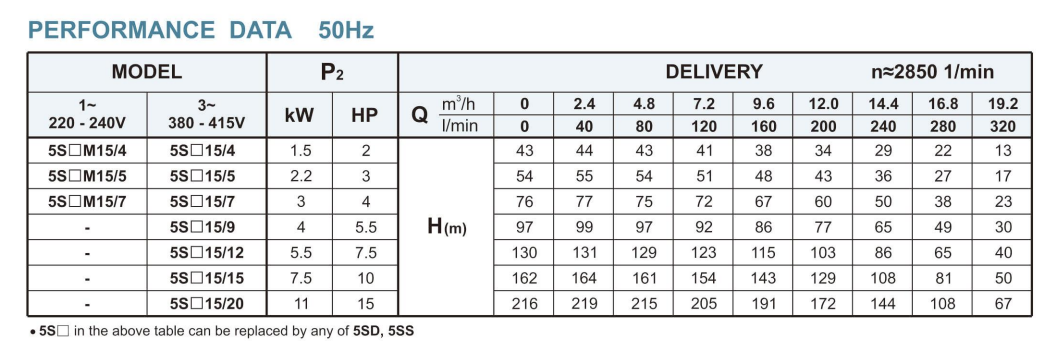

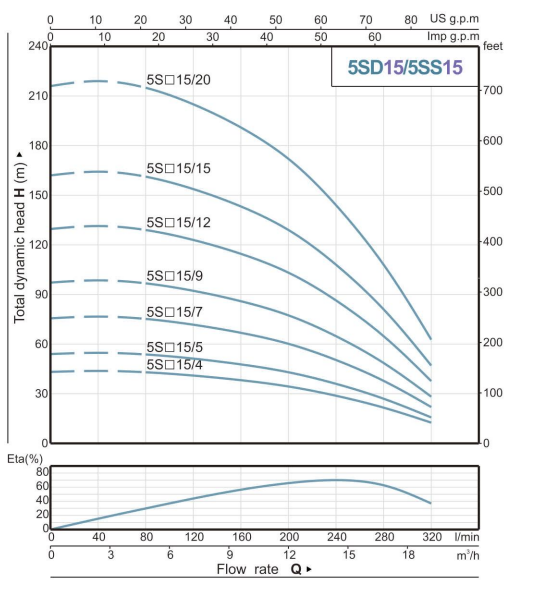

Performance Curve
