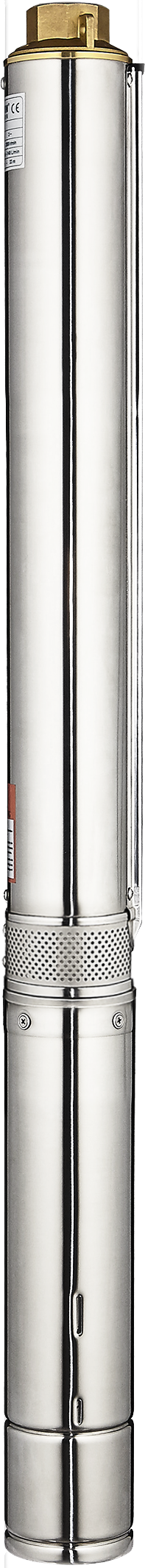

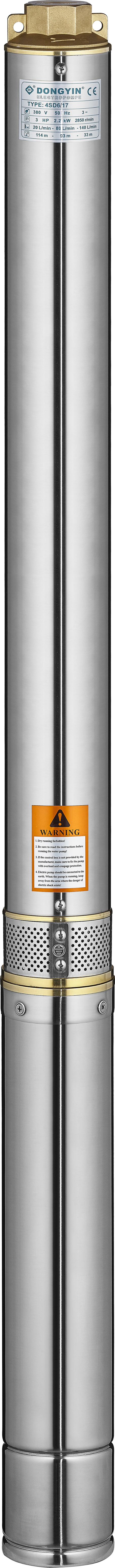

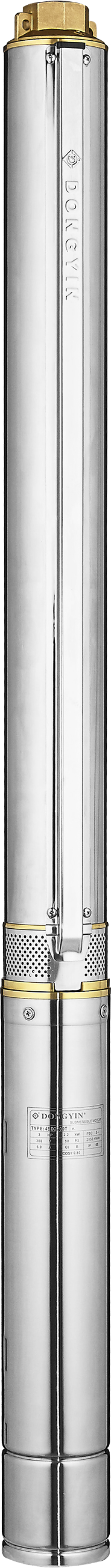

4SD Submersible Deep Well Pump
DONGYIN Pump provide a wide range of deep well submersible pumps from 2'' to 10'' which are designed for tranfering water from wells, ponds, lakes and cisterns.
4SD series are suitable for wells over φ100mm
4SDM deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for sprinkler lawn irrigation, household tap water, swimming pool filling, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.
Maximum liquid temperature +35 °C
Maximum sand content:0.25%
Maximum immersion depth of 60 m
Minimum well diameter:100mm
Installation: vertical
Rewindable oil-filled motor 50/60Hz
Food degree mechanical oil
Voltage:
single-phase 110V/60Hz, 220V-240V/50Hz, 220V/60Hz
three-phase 380V-400 V
Insulation: class F
Protection: IP 68
| Components | Material |
| Pump external casing | AISI304 SS |
| Delivery casing | ①Cast-Cu ASTM C85500 ②AISI 304 SS |
| Suction lantern | ①Cast-Cu ASTM C85500 ②AISI 304 SS |
| Difuser | Plastic.PC |
| lmpeller | Plastic.POM |
| Shaft | AlSI304 SS |
| Shaft coupling | AlSI304 SS |
| Wear ring | AlSI 304 SS |
| Motor external casing | AlISI 304 SS |
| Top chock | ①Cast-Cu ASTM C85500 ②AISI 420 SS |
| ③Cast-iron ASTM NO.30 | |
| Bottom support | AISI 304 Ss |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic) |
| Shaft | AISI 304 SS-ASTM5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceuic use. |
Top chuck is available with brass or SS304
Delivery casing, Inlet parts are available SS304
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Products Description
4SDM deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for sprinkler lawn irrigation, household tap water, swimming pool filling, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.
Features
Rewindable oil-filled motor 50/60Hz
Food degree mechanical oil
Voltage:
single-phase 110V/60Hz, 220V-240V/50Hz, 220V/60Hz
three-phase 380V-400 V
Insulation: class F
Protection: IP 68
| Components | Material |
| Pump external casing | AISI304 SS |
| Delivery casing | ①Cast-Cu ASTM C85500 ②AISI 304 SS |
| Suction lantern | ①Cast-Cu ASTM C85500 ②AISI 304 SS |
| Difuser | Plastic.PC |
| lmpeller | Plastic.POM |
| Shaft | AlSI304 SS |
| Shaft coupling | AlSI304 SS |
| Wear ring | AlSI 304 SS |
| Motor external casing | AlISI 304 SS |
| Top chock | ①Cast-Cu ASTM C85500 ②AISI 420 SS |
| ③Cast-iron ASTM NO.30 | |
| Bottom support | AISI 304 Ss |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic) |
| Shaft | AISI 304 SS-ASTM5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceuic use. |

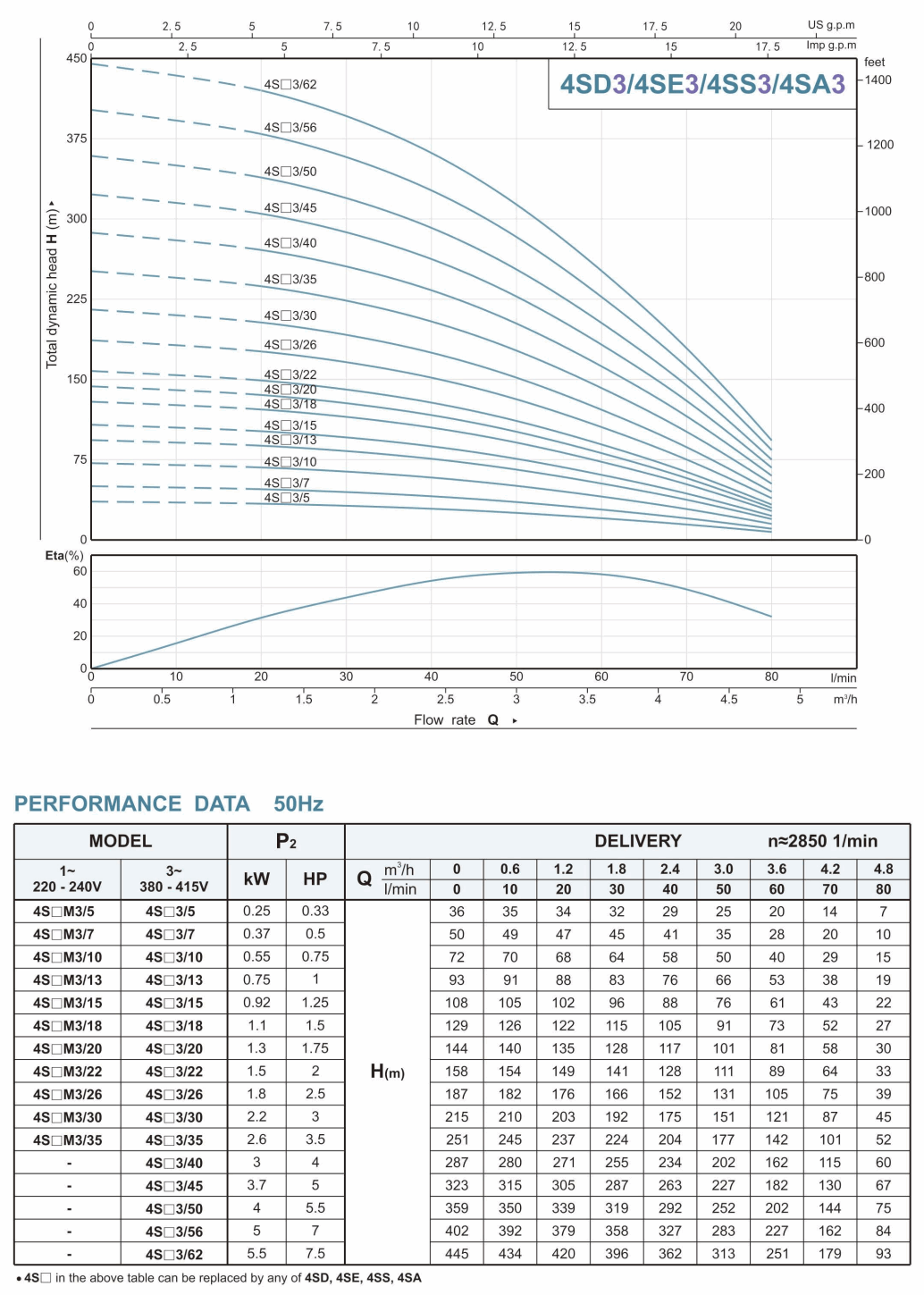

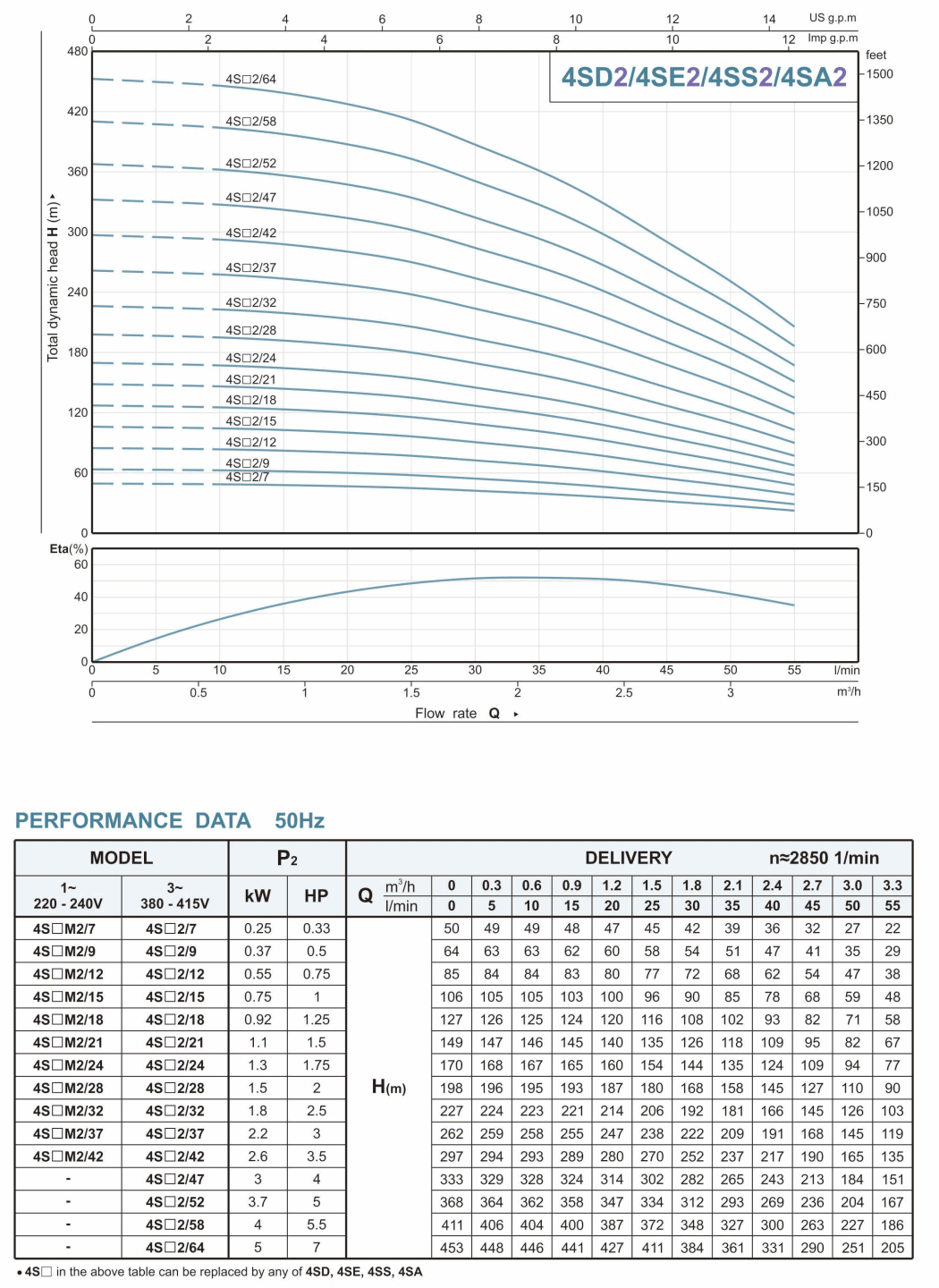

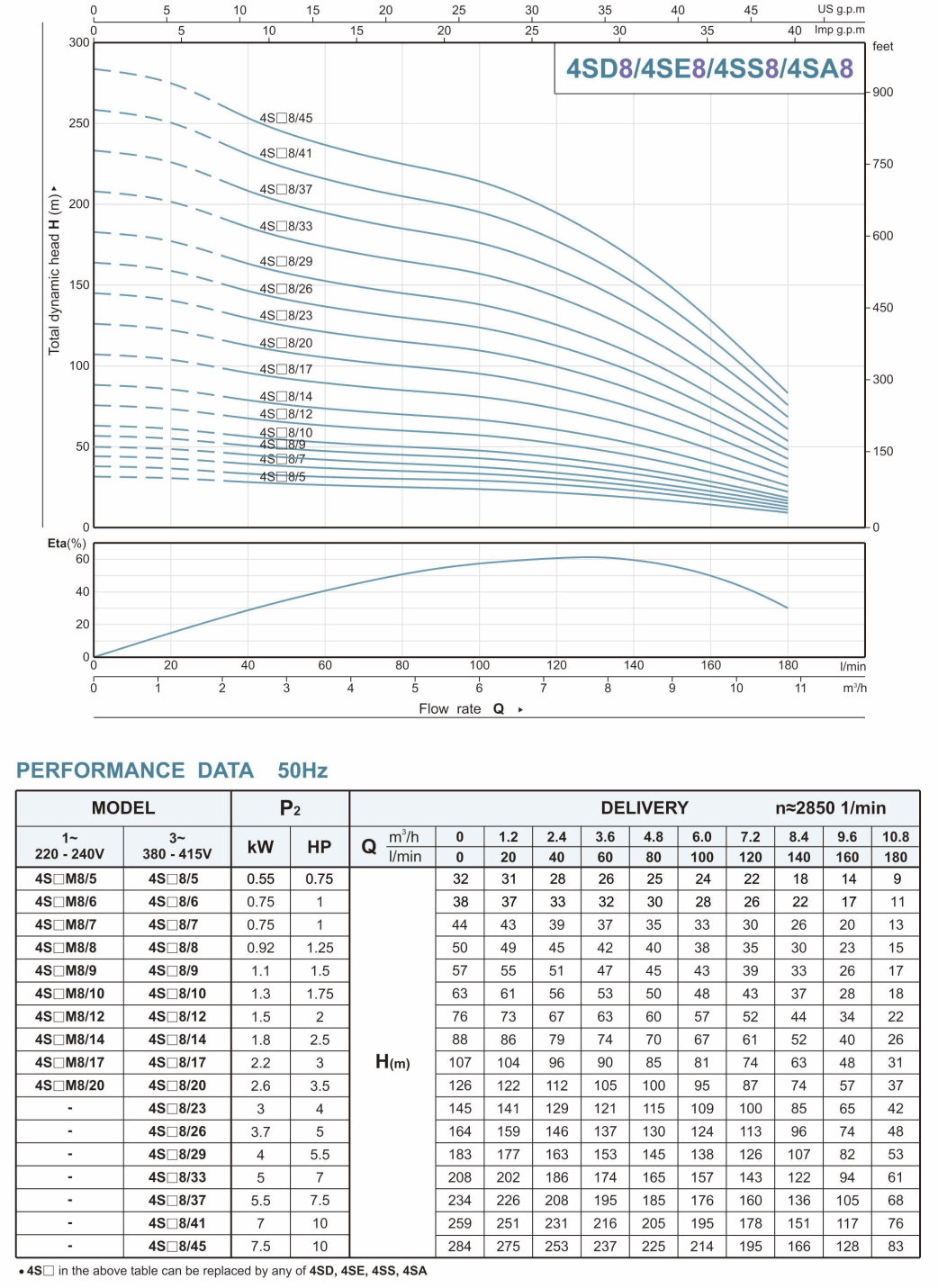

Performance Curve
