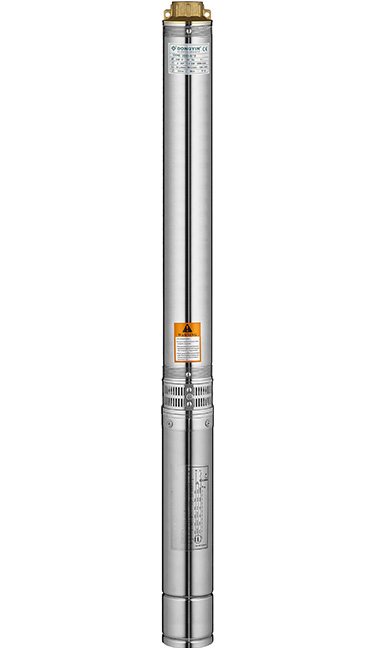

3SE Submersible Deep Well Pump
DONGYIN Pump provide a wide range of deep well submersible pumps from 2'' to 10'' which are designed for tranfering water from wells, ponds, lakes and cisterns.
3SE series are suitable for wells over φ75mm
3SE deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for sprinkler lawn irrigation, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.
Maximum fluid temperature up to +35°C
Maximumsandcontent:0.25%
Minimum well diameter:3"
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Equip with start control box or digital auto-control box Pumps are designed by casing stressed
Curve tolerance according to ISO 9906
| Components | Material |
| Pump external casing | AIS 304 SS |
| Delivery casing | ①Cast-Cu ASTM C85500 ②AISI 304 SS |
| Suction lantern | ①Cast-Cu ASTM C85500 ②AISI 304 SS |
| Difuser | Plastic.PC |
| lmpeller | Plastic.POM |
| Shaft | AlSI304 SS |
| Shaft coupling | AlSI304 SS |
| Wear ring | AlSI304 SS |
| Motor extenal casing | AISI 304 SS |
| Top chock | ①Cast-Cu ASTM C85500 |
| ②Cast-iron ASTM NO.30 | |
| Bottom support | AlSI304 SS |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic/TC) |
| Shaft | AISI 304 SS-ASTM5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
Top chuck is available with brass or SS304
Delivery casing, Inlet parts are available SS304
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Products Description
3SE deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for sprinkler lawn irrigation, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Equip with start control box or digital auto-control box Pumps are designed by casing stressed
Curve tolerance according to ISO 9906
| Components | Material |
| Pump external casing | AIS 304 SS |
| Delivery casing | ①Cast-Cu ASTM C85500 ②AISI 304 SS |
| Suction lantern | ①Cast-Cu ASTM C85500 ②AISI 304 SS |
| Difuser | Plastic.PC |
| lmpeller | Plastic.POM |
| Shaft | AlSI304 SS |
| Shaft coupling | AlSI304 SS |
| Wear ring | AlSI304 SS |
| Motor extenal casing | AISI 304 SS |
| Top chock | ①Cast-Cu ASTM C85500 |
| ②Cast-iron ASTM NO.30 | |
| Bottom support | AlSI304 SS |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic/TC) |
| Shaft | AISI 304 SS-ASTM5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |

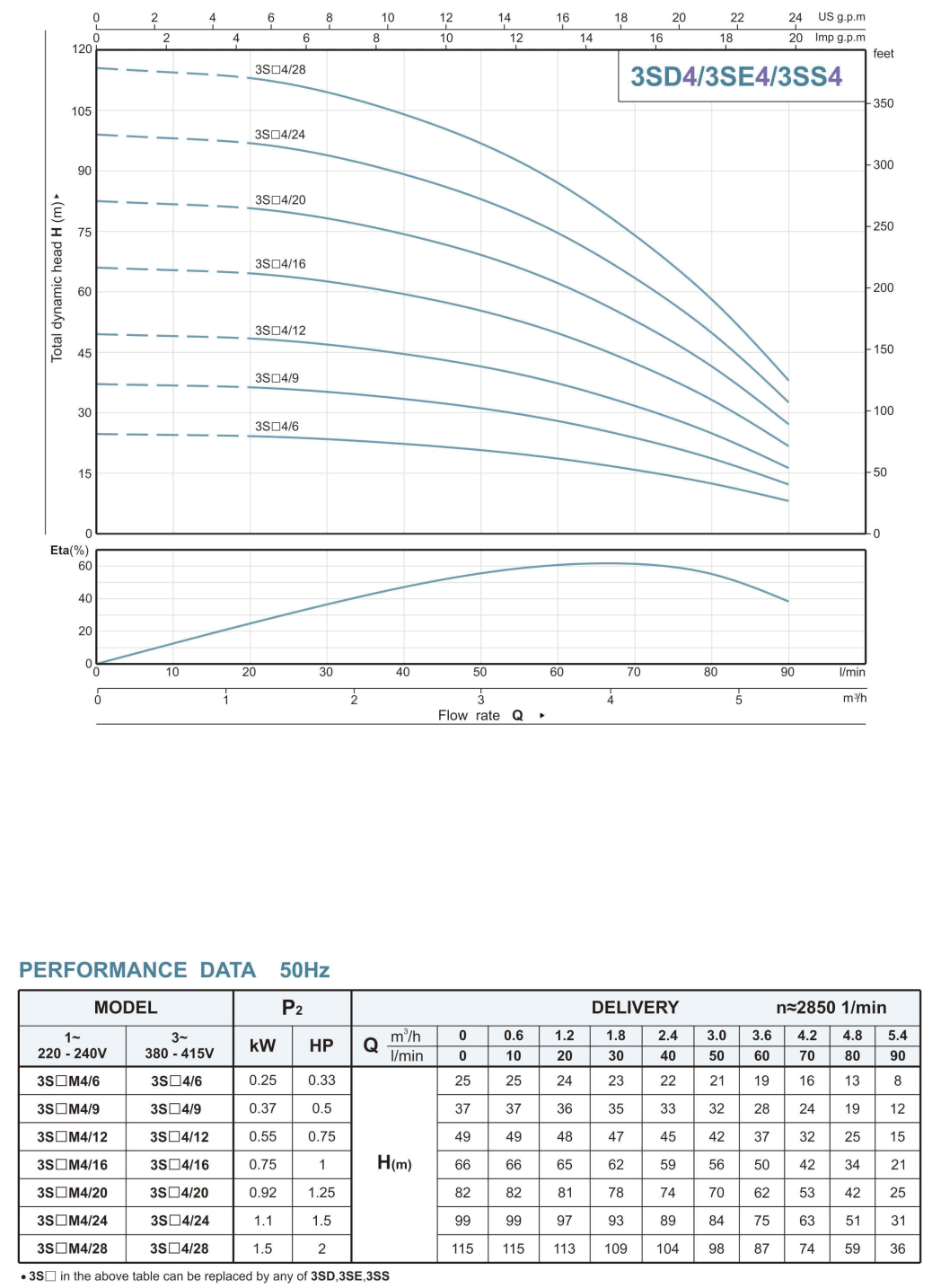

Performance Curve
