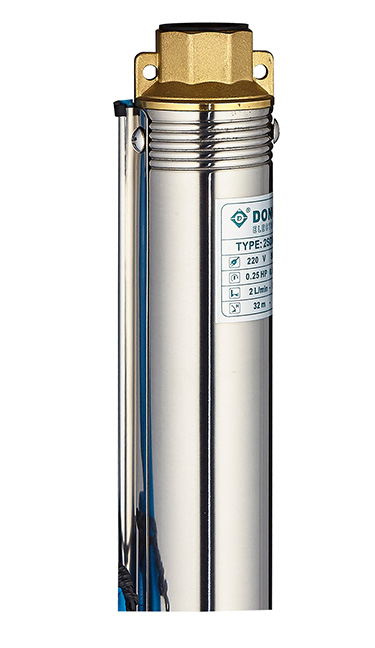

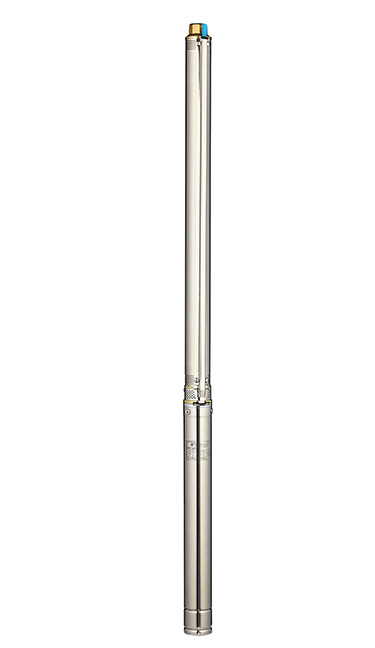

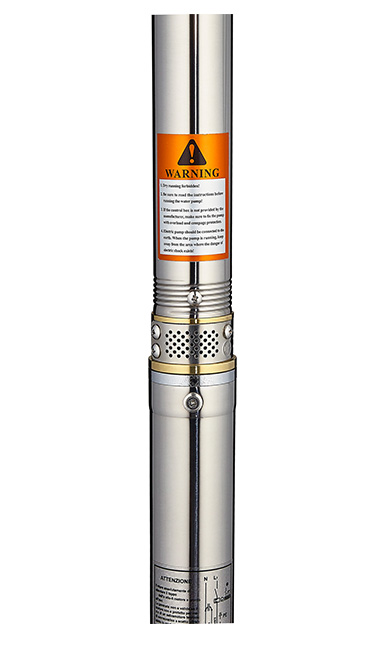

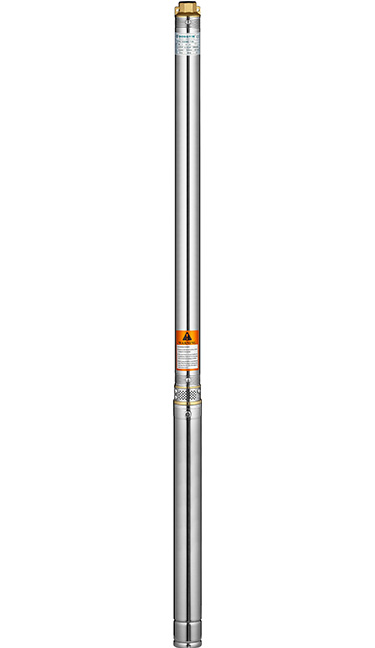

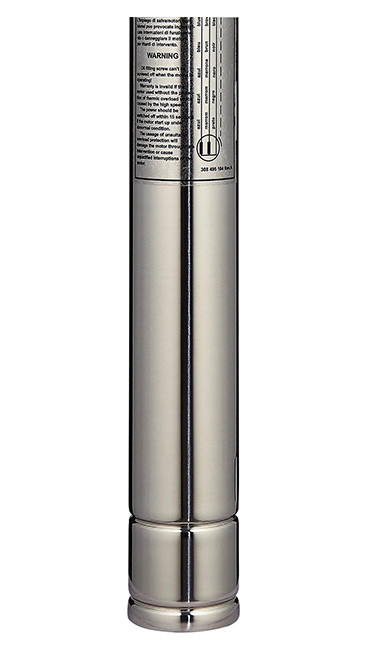

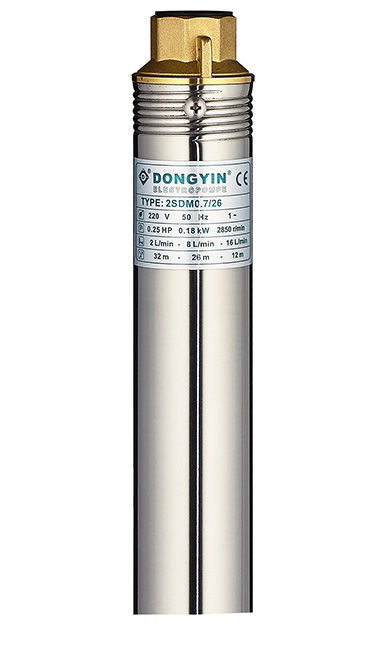

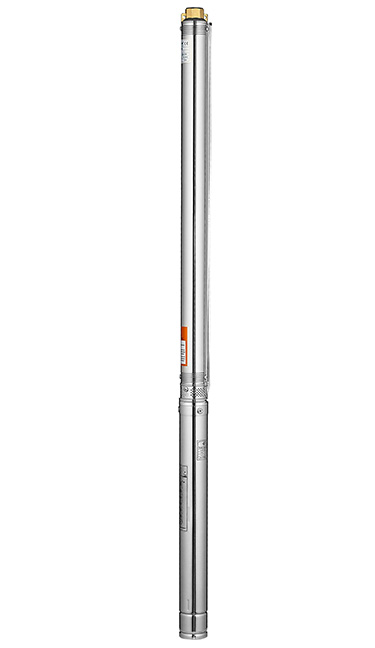

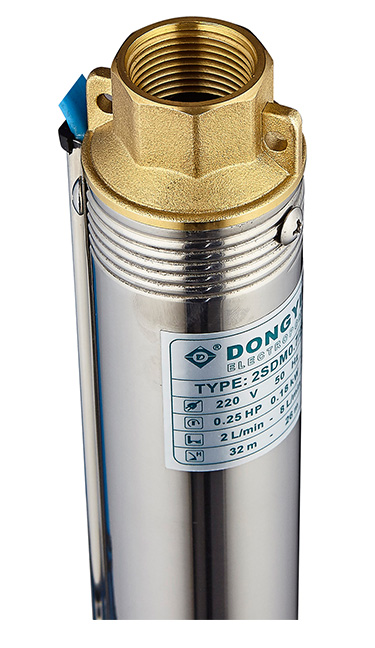

2SD Submersible Deep Well Pump
DONGYIN Pump provide a wide range of deep well submersible pumps from 2'' to 10'' which are designed for tranfering water from wells, ponds, lakes and cisterns.
2SD series are suitable for wells over φ50mm
2SDM deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for sprinkler lawn irrigation, household tap water, swimming pool filling, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.
Maximum liquid temperature +35 °C
Maximum sand content:0.25%
Maximum immersion depth of 60 m
Minimum well diameter:50mm

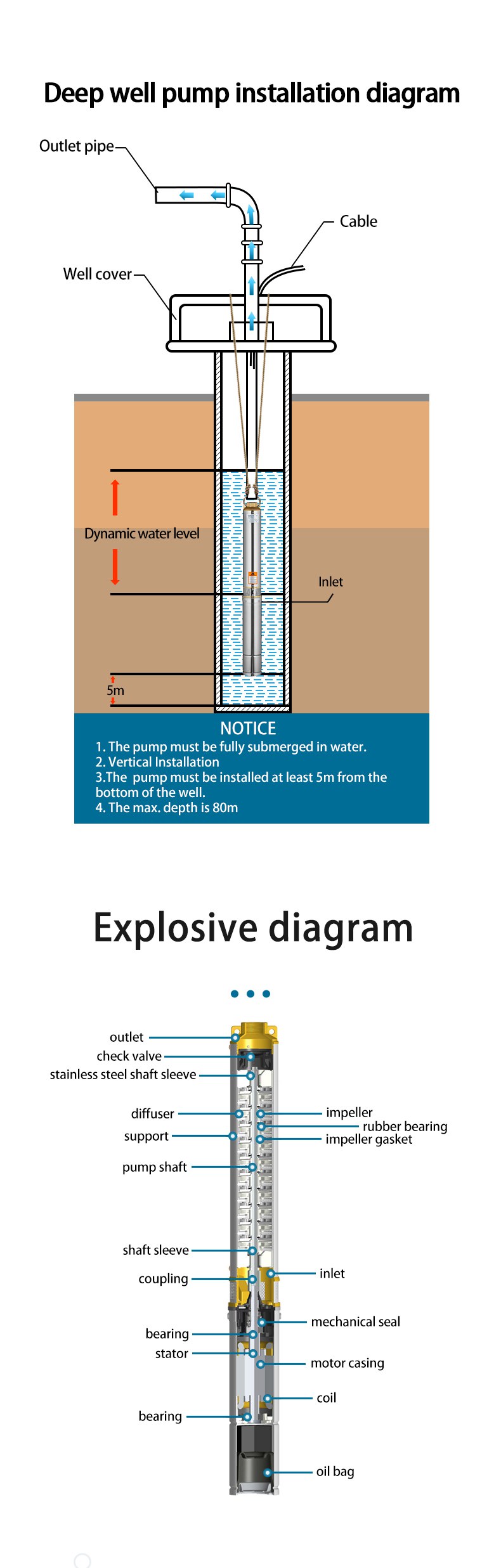

Installation: vertical
Rewindable oil-filled motor 50/60Hz
Food degree mechanical oil
Voltage:
single-phase 110V/60Hz, 220V-240V/50Hz, 220V/60Hz
three-phase 380V-400 V
Insulation: class F
Protection: IP 68
| Components | Material |
| Pump external casing | AIS1304 SS |
| Delivery casing | Cast-Cu ASTM C85500 |
| Suction lantern | Cast-Cu ASTM C85500 |
| Diffuser | Plastic. PC |
| Impeller | Plastic. POM |
| Shaft | AISI304 SS |
| Shaft coupling | AISI304 SS |
| Wear ring | AISI304 SS |
| Motor external casing | AISI304 SS |
| Top chock | Cast-iron |
| Cast-Cu | |
| Bottom support | AISI304SS |
| Mechanical seal | Special seal for deep well (Graphite-Ceramic/TC) |
| Shaft | AISI304 |
| Seal lubricant oil | Oil for food machinerv and pharmaceutic use |
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Products Description
2SDM deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for sprinkler lawn irrigation, household tap water, swimming pool filling, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.
Features
Rewindable oil-filled motor 50/60Hz
Food degree mechanical oil
Voltage:
single-phase 110V/60Hz, 220V-240V/50Hz, 220V/60Hz
three-phase 380V-400 V
Insulation: class F
Protection: IP 68
| Components | Material |
| Pump external casing | AIS1304 SS |
| Delivery casing | Cast-Cu ASTM C85500 |
| Suction lantern | Cast-Cu ASTM C85500 |
| Diffuser | Plastic. PC |
| Impeller | Plastic. POM |
| Shaft | AISI304 SS |
| Shaft coupling | AISI304 SS |
| Wear ring | AISI304 SS |
| Motor external casing | AISI304 SS |
| Top chock | Cast-iron |
| Cast-Cu | |
| Bottom support | AISI304SS |
| Mechanical seal | Special seal for deep well (Graphite-Ceramic/TC) |
| Shaft | AISI304 |
| Seal lubricant oil | Oil for food machinerv and pharmaceutic use |

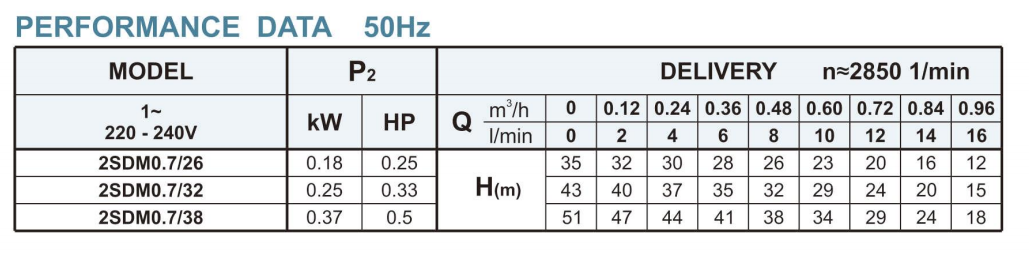

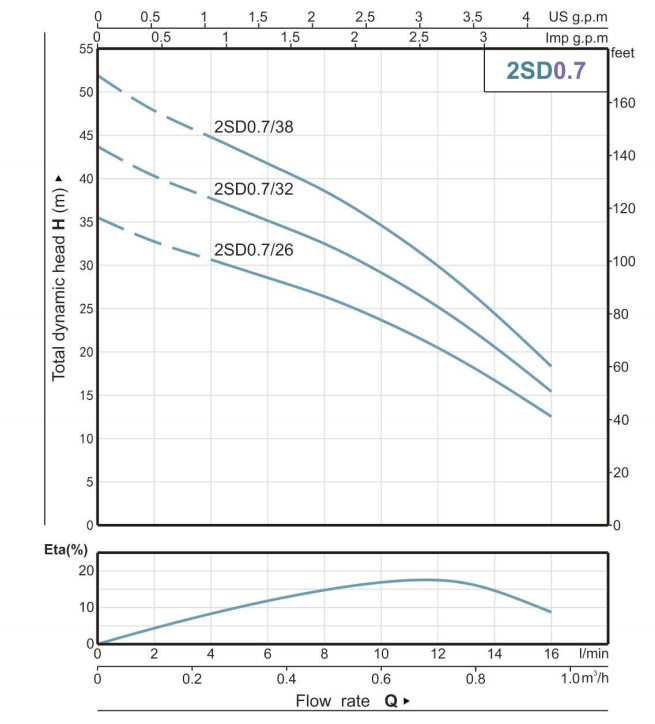

Performance Curve
